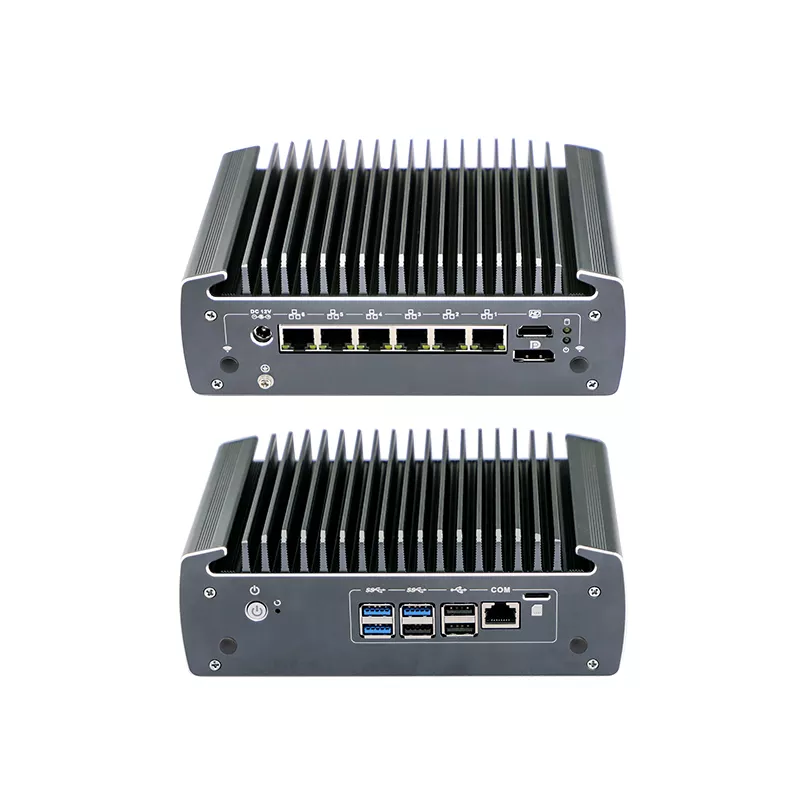

10th Gen Core i3 i5 i7 mini pc,
with 6 Lan Pfsense Firewall Appliance,
and M.2 3052 B-key 5G DDR4 RAM Max Support 64G
| System Parameter | |
| Model | N3061 Firewall Mini PC |
| Processor | Intel Core i3 10110U(Dual core, 4 threads,2.1GHz,Max.Turbo 4.1GHz)； |
| Intel Core i5 10210U(Quad core, 8 threads,1.6GHz,Max.Turbo 4.2GHz) |
|
| Intel Core i7 10810U(Six core, 12 threads,1.1GHz,Max.Turbo 4.9GHz) |
|
| Chipset | Intel UHD Graphics |
| Memory | Support 2*DDR4 2600 RAM Slot， Max 64 GB |
| BIOS | AMI UEFI BIOS |
| Display Port | 1*DP,1*HDMI(Support synchronous/asynchronous dual display, DP interface resolution up to 4096*2160@60Hz) |
| Storage | 1*M.2,1*2.5″ SSD/HDD,support RAID 0/1 |
| Expansion | 1*M.1-2280 M-Key slot(Support SATA protocol and NVME protocol)
1*M.2-3052 B-Key slot(Support USB3.0 protocol, support 4G/5G) ,1* Nano-SIM slot on the plate 1*M.2-2230 E-Key slot(Support WIFI/Bluetooth) |
| Front I/O | 3*USB3.0,3*USB2.0,1*Power Switch,1*RJ45 COM(Support Console) |
| Rear I/O | 6* RJ45 1000M Lan,1*DC,1*DP,1*HDMI |
| Network | 6*intel i226-v 2.5G Lans,LAN3-6 can be 802.3af standard POE lan(option) |
| Input Voltage | Support DC 12V ； |
| Certificates | CE、 CCC、 FCC Class A、 ROHS |
| Other Function | Auto power on when there is electricity,Timing boot, Wake on LAN,PXE boot,Watchdog（0～255 level） |
| Application | Firewall，Network server，Network security，Router etc. |
| Structure Parameter | |
| Color | Metal gray【Any color can be customized】 |
| Material | High-quality all aluminum， surface anodic oxidation |
| Dimension | 186 * 126.5 * 66 mm |
| Weight | 1.3 kg |
| Environmental Parameter | |
| Work Temp | 0℃ ～ +50℃（Commercial HDD）， -20℃ ～ +50℃（Industrial SSD）， Surface air flow |
| Work Humidity | 0% ～ 95% non-condensing |
