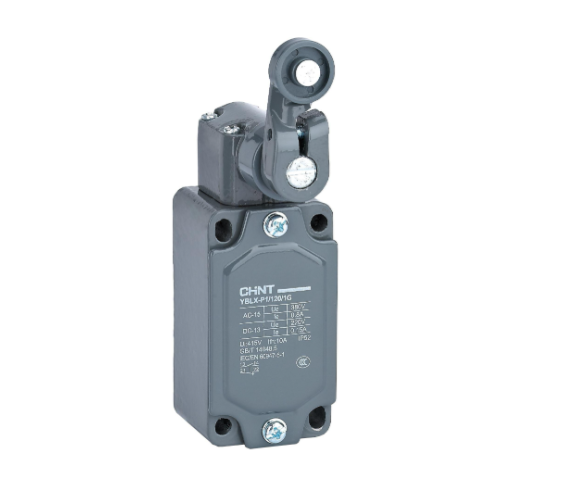

CHINT YBLX-P1 Travel Switch,
is a durable, precision-built limit switch designed for position detection and motion control in industrial automation.
It is suitable for AC-15 and DC-13 control circuits, ensuring stable operation in machinery,
conveyors, and automated systems. With robust housing, flexible actuator options,
and IP65 protection, the YBLX-P1 provides high reliability and mechanical endurance,
making it ideal for harsh industrial environments where precision and longevity are crucial.
- Standard Compliance: GB/T 14048.5, IEC 60947-5-1
- Rated Insulation Voltage (Ui): 500V
- Rated Thermal Current (Ith): 10A
- Rated Operating Voltage (Ue):
- AC-15: 380V / 4A
- DC-13: 220V / 0.3A
- Contact Configuration: 1NO + 1NC
- Actuator Types: Plunger, Roller Plunger, Roller Lever, Adjustable Roller Lever, Fork Lever, Rod Lever
- Mechanical Life: ≥ 10 million operations
- Electrical Life: ≥ 500,000 operations
- Protection Degree: IP65
- Ambient Temperature: −25°C to +70°C
- Installation Altitude: ≤ 2000m
- Mounting Type: Screw mounting with adjustable actuator heads
- Housing Material: High-strength thermoplastic or metal alloy
- Contact Type: Snap-action mechanism with double break
- Connection Type: Screw terminals
- Operation Frequency: 120 cycles/min (mechanical)
- Weight: Approx. 0.25 kg
