8343N-5 3G/4G Serial Networking Solution used as 3G router,
is 3G/4G network solutions launche by Shanghai ZLAN after ZLAN8100. The serials contain 4 sub-models: 8303 (support Telecom 3G), 8343 (Support Modbus TCP Gateway), 8303-5 (Support Mobile and Unicom 3G/4G), 8303N (Support P2P). The function of Modbus TCP and P2P can add to models 8303 or 8303-5 such as ZLAN8343N-5.

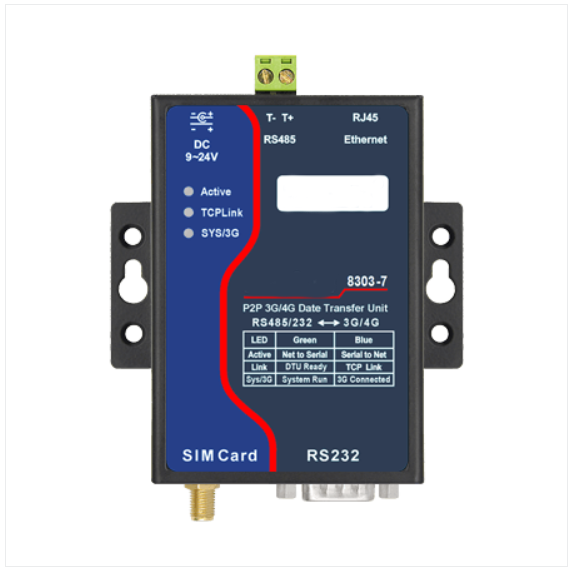

8303 has RS232/485 interface, can send the data collected by RS232/485 to the cloud server. Combined with ZLAN P2P technology, the users can collect data anytime and anywhere without building server, the collecting method can also be a virtual serial port. If be 8343N, can convert Modbus TCP protocol to Modbus RTU, the users use Modbus TCP to collect data of RTU devices on the computer. ZLAN8343N and ZLAN8343N-5 are the most functional serial server separately applie to P2P Modbus Gateway of Telecom and Mobile/Unicom, suitable for PLC monitoring and field data collection very well.
8303 also has the Ethernet port, can use it to communication in the places with Ethernet, users can save the 3G/4G traffic. In addition 8303 can use as 3G/4G router to achieve Ethernet port converting to 3G/4G.
Applications:PLC remote monitor, Industrial remote control/sensing/measurement, Public Utilities, Meteorological Data Acquisition, Three-Proofing & Hydrology Monitor, Finance, GPRS, etc.
The following is the application of each sub-model respectively.
1. Normal 3G/4G DTU
