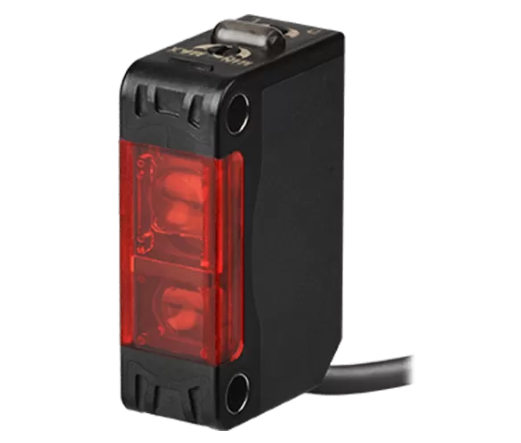

AUTONICS BJP100-BDT-P,
Data sheet Print
| Sensing type | BGS reflective type |
|---|---|
| Sensing distance | 10 to 100mm |
| Sensing target | Opaque |
| Light source | Red LED(660nm) |
| Response time | Max. 1.5ms |
| Power voltage | 12-24VDC  ±10%(ripple P-P: max. 10%) |
| Current consumption | Max. 30mA |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON/Dark ON(set by switch) |
| Control output | PNP open collector |
| Connection type | Cable type(Ø3.5, 2m) |
| Environment_Ambient illumination | Sunlight: Max. 10,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -25 to 55℃, storage: -40 to 70℃ |
| Protection structure | IP65(IEC standard) |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Available setting distance | 20 to 100mm |
| Hysteresis(distance) | Max. 10% of setting distance |
| Material | Case: polycarbonate+acrylonitrile butadiene styrene, LED indicator: polycarbonate, sensing part: polymethyl methacrylate |
| Accessories | Adjustment screwdriver, bracket A, M3 bolts: 2, M3 nuts: 2 |
| Weight | Approx. 105g(approx. 50g) |
