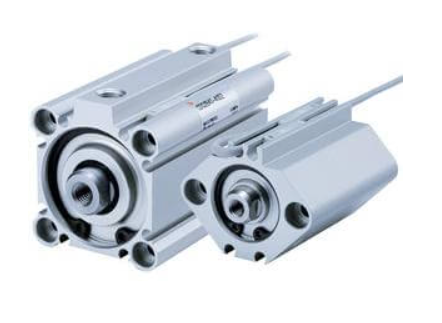

SMC CQ2-Z Compact Double Acting Single Rod Temperature Resistant Options,
The CQ2 compact cylinder is the world’s best selling pneumatic cylinder and is supported globally.
The CQ2 is available in 15 bore sizes from 12mm to 200mm. It comes standard with male or female piston rod threads.
There are 42 standard options which make it one of the most versatile cylinder series on the market. For mounting flexibility, it is possible to mount auto switches on any of the 4 surfaces.
- Double acting, single rod cylinder
- High temperature (XB6) Bore sizes (mm): 12, 16, 20, 25, 32, 40, 50, 63, 80, 100
- Low temperature (XB7) Bore sizes (mm): 12, 16, 20, 25, 32, 40
- Standard stroke range (mm): 5 to 100
- Port threads: M (12 to 25 bore); Rc, NPT or G (32 to 100 bore)
- Low temperature Option (XB7) ambient range -40 to 70°C
- High temperature Option (XB6) ambient range -10 to 150°C
