SMC C(D)Q2-Z Compact Double Acting Single Rod Stroke Options,

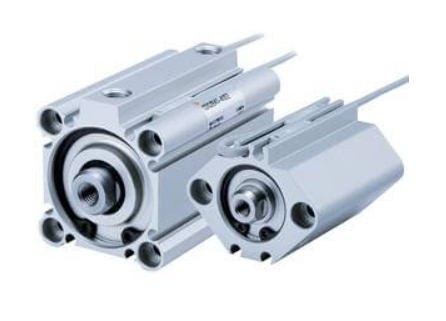

The CQ2 compact cylinder is the world’s best selling pneumatic cylinder and is supported globally.
The CQ2 is available in 15 bore sizes from 12mm to 200mm. It comes standard with male or female piston rod threads.
There are 42 standard options which make it one of the most versatile cylinder series on the market. For mounting flexibility, it is possible to mount auto switches on any of the 4 surfaces.
- XB9 for low speed applications (10 to 50mm/sec)
- XB13 for low speed applications (5 to 50mm/sec)
- XC8 stroke adjustable for the extend stroke
- XC9 stroke adjustable for the retract stroke
- XC10 dual stroke, double rod type (4 positions)
- XC11 dual stroke, singe rod type (3 positions)
