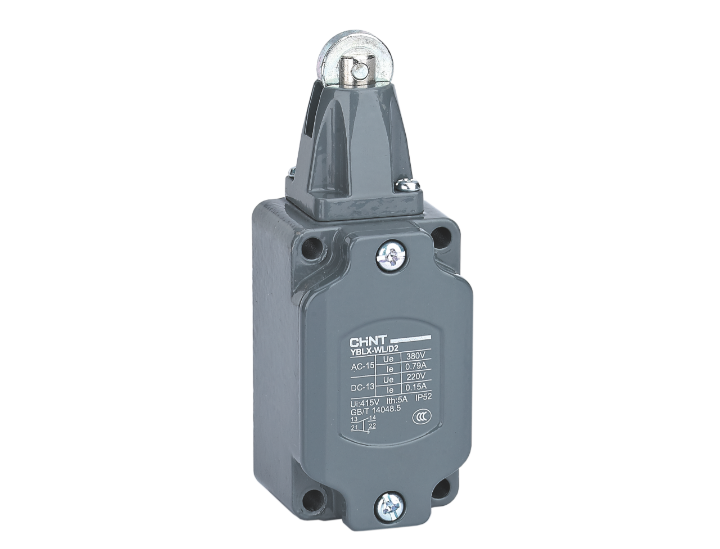

CHINT YBLX-WL Series Travel Switch,
it is designe for position detection and motion control in industrial automation systems.
furthermore It is suitable for AC control circuits up to 380V and DC circuits up to 220V,
in addition to use to control mechanical motion, direction, or speed, and for limit or program control in machinery.
With robust construction, multiple actuator types, and IP52 protection,
finally it ensures precise and reliable performance in machine tools, conveyors, and automatic production lines.
- Standards Compliance: GB/T 14048.5, IEC 60947-5-1
- Rated Operating Voltage: AC 380V (50/60Hz); DC 220V
- Rated Control Current: AC-15: 0.79A (380V); DC-13: 0.15A (220V)
- Insulation Voltage (Ui): 415V
- Impulse Withstand Voltage (Uimp): 4kV
- Ingress Protection: IP52
- Operation Frequency: 20 operations/minute
- Installation Category: Class II
- Pollution Degree: 3
- Altitude: ≤ 2000m
- Ambient Temperature: −5°C to +40°C
- Relative Humidity: ≤50% at +40°C; ≤90% at +20°C
- Contact Type: 1 NO + 1 NC
- Mounting Orientation: Suitable for fixed installations with minimal vibration
- Actuator Types:
- CA2: Single-roller rotating arm
- CA12: Adjustable single-roller rotating arm
- D / D2: Plunger and plunger-roller types
- NJ / NJ-S2: Universal spring rod types
- CL: Adjustable straight shaft type
- Operating Force: ≤30N (depending on model)
- Operation Range: ≤45° (rotary types), ≤7.5mm (plunger types)
- Total Travel: 60–95° or mm range per configuration
