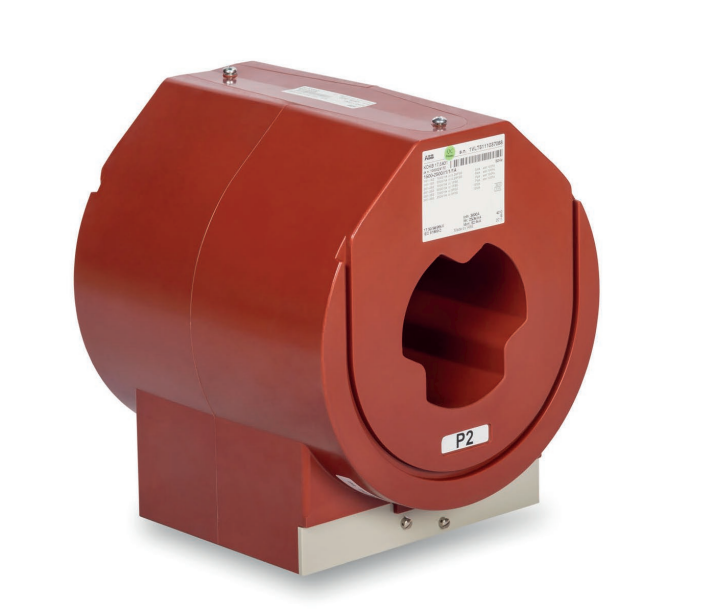

ABB KOKS 12 KOKS 17.5_1VLC000515 Bus current transformer

ABB KOKS 12 KOKS 17.5_1VLC000515 Bus current transformer,
The KOKS 12 and KOKS 17.5 current transformers are caste in epoxy resin,
furthermore and designe for insulation voltages up to 17.5 kV.
in addition The transformers are configure as bus-type,
with one or more ratios (with a possibility of secondary reconnection),
and perform a function of a bushing when installe in the switchboard.
in addition The transformer is designe for 1 to 6 secondary windings and in dependence on the combination,
furthermore of parameters (accuracy class, burden, short-circuit current, overcurrent factor…),
with possibility to choose from various sizes of the transformer.
The secondary windings are use for measurement or protection purposes.
furthermore During the operation of transformer, one secondary connector of each use winding,
moreover and one of short-circuite or unuse has to be earthed.
The secondary windings are lead out into casted-type secondary terminal board.
moreover The transformer can be mounte in any position. The transformer position is fixe with four screws.
