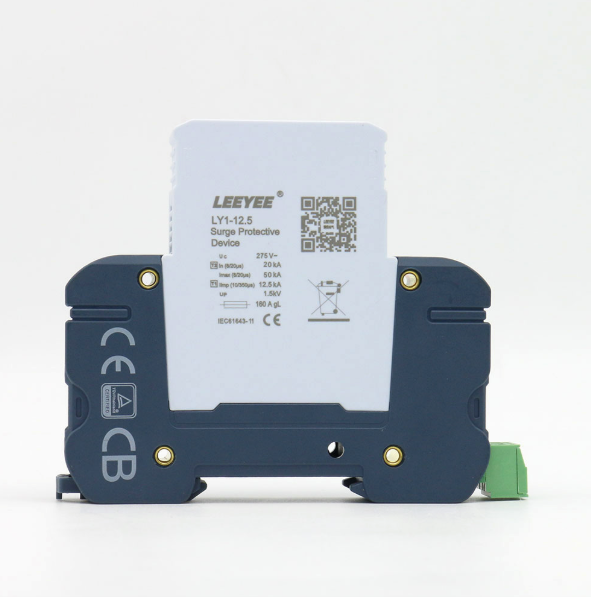

AC surge protective device LY1-12.5/1(S)Pluggable Single-Pole SPD,
We are a professional 50kA 1 pole AC surge protective device manufacturer, producing compact,
and reliable SPDs for single-phase 230V AC networks. As an experienced factory,
furthermore we provide OEM, wholesale, and bulk buy services to electrical wholesalers and system integrators worldwide.
moreover Built with a graphite (C) shell, rated IP65,
in addition to mounted on a 35mm DIN rail, it ensures convenient installation and high safety.
therefore Each unit is CE certified and backed by a 2-year warranty.
then We also provide OEM design and bulk order services,
after making this SPD ideal for wholesalers who require reliable,
finally cost-effective surge protection directly from the manufacturer.
| Electrical Characteristics | ||
| SPD type 1+2+3 | ||
| Network | 230/400 V 3-phase+N | |
| AC system TT-TNS | ||
| Nominal line voltage | Un | 230/400 Vac |
| Max. AC operating voltage Uc 275 Vac | ||
| Temporary Over Voltage (TOV) Charasteristics – 5 sec. Without disconnection | UT | 335 Vac withstand |
| Temporary Over Voltage (TOV) Charasteristics – 120 mn Without disconnection or with safety disconnection | ||
| Temporary Over Voltage N/PE (TOV HT) Without disconnection or with safety disconnection | UT | 1.2 kV/300A/200 ms withstand |
| Residual Current Leakage current to Ground Ipe None | ||
| Follow current | If | None |
| Nominal discharge current 15 x 8/20 µs impulses In 20 kA | ||
| Max. discharge current max. withstand @ 8/20 µs by pole | Imax | 50 kA |
| Impulse current by pole max. withstand 10/350µs by pole Iimp 12.5 kA | ||
| Total lightning currentmax. total withstand @ 10/350µs | Itotal | 50 kA |
| Withstand on Combination waveform IEC 61643-11 Class III test: 1.2/50µs – 8/20µs Uoc 6 kV | ||
| Withstand on overvoltages IEEE C62.41.1 | 20 kV | |
