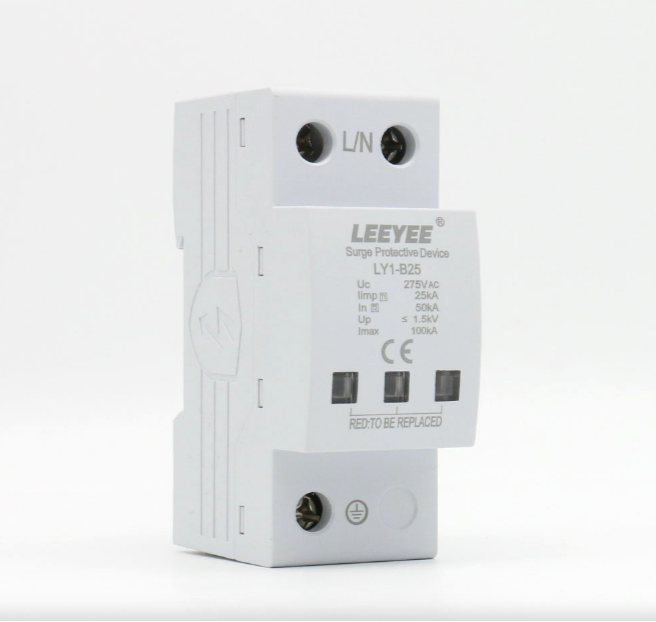

AC surge protective device LY1-B25/1(S)MONOBLOCK SINGLE-POLE SPD,
As a professional AC surge protective device manufacturer, we supply high-quality 100kA 1 pole SPD designed for industrial and residential power systems. This model uses advanced graphite arc gap and MOV ZnO materials, providing superior lightning and surge protection performance.
Our SPD is built with PVC/PA66/PBT flame-retardant housing and fully complies with IEC 61643-11:2011 / EN 61643-11:2022 standards. Certified with CE and TUV, it ensures reliability and durability even under harsh environments.
As a factory-based OEM/ODM supplier, we offer wholesale, bulk buy, and in bulk orders for distributors worldwide. Choose our 100kA 1 pole AC surge protective device to enhance the stability and safety of your power distribution systems.
| ■ Technical Data | ||||||
| IEC Electrical | 150 | 275 | 320 | 385 | 440 | |
| Nominal AC Voltage (50/60Hz) | Uo/ Un | 120 V | 230 V | 230 V | 230 V | 400 V |
| Maximum Continuous Operating Voltage (AC) | Uc | 150 V | 275V | 320 V | 385 V | 440 V |
| Nominal Discharge Current (8/20 μs) | In | 25kA | ||||
| Maximum Discharge Current (8/20 μs) | Imax | 100kA | ||||
| Impulse Discharge Current (10/350 μs) | Iimp | 25kA | ||||
| Specific Energy | W/R | 156 kJ / Ω | ||||
| Charge | Q | 12.5 As | ||||
| Voltage Protection Level | Up | 1 kV | 1.5 kV | 1.6 kV | 1.8 kV | 2 kV |
| Response Time | tA | < 25 ns | ||||
| Back-Up Fuse (max) | 315 A gL / gG | |||||
| Short-Circuit Current Rating (AC) | ISCCR | 50 kA | ||||
| TOV Withstand 5s | UT | 180V | 335V | 335V | 335V | 580V |
| TOV 120min | UT | 230V | 440V | 440V | 440V | 765V |
| Number of Ports | 1 | |||||
| Mechanical & Environmental | ||||||
| Operating Temperature Range | Ta | -40ºF to +158ºF [-40ºC to +70ºC] | ||||
| Permissible Operating Humidity | RH | 5%…95% | ||||
| Atmospheric pressure and altitude | 80k Pa … 106k Pa / -500 m…… 2000 m | |||||
| Terminal Screw Torque | Mmax | 39.9 Ibf·in[4.5 Nm] | ||||
| Conductor Cross Section (max) | 2 AWG (Solid, Stranded) / 4 AWG (Flexible) 35 mm² (Solid, Stranded) / 25 mm²(Flexible) |
|||||
| Mounting | 35 mm DIN Rail, EN 60715 | |||||
| Degree of Protection | IP 20 (built-in) | |||||
| Housing Material | Thermoplastic: Extinguishing Degree UL 94 V-0 | |||||
| Thermal Protection | Yes | |||||
| Operating State / Fault Indication | Green ok / Red defect | |||||
| Remote Contacts (RC) RC Switching Capacity RC Conductor Cross Section (max) |
Optional AC: 250V / 0.5 A; DC: 250V / 0.1 A;125V / 0.2 A;75V / 0.5 A 16 AWG (Solid) / 1.5 mm²(Solid) |
|||||
