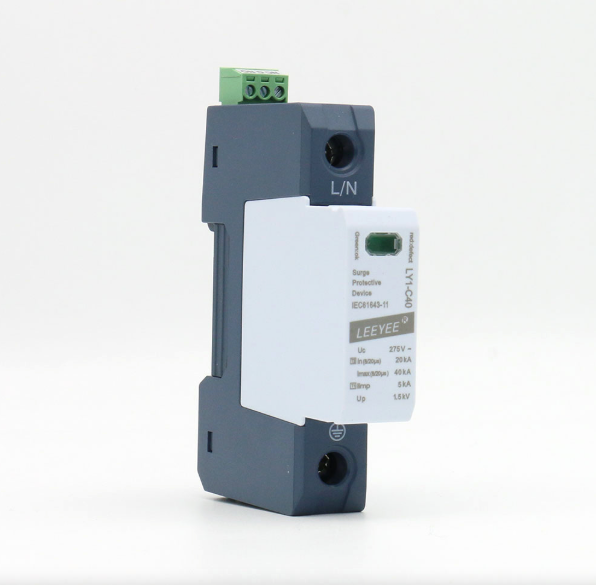

AC surge protective device LY1-C40/1(S)PLUGGABLE SINGLE-POLE SPD,
As a professional AC surge protective device manufacturer, our 40kA 1 pole SPD is designed for single-phase AC power systems.
It adopts high-quality MOV ZnO varistors to provide fast response and strong surge absorption against overvoltage transients.
The device body is made of PVC/PA66/PBT, offering excellent insulation, flame resistance, and durability.
Fully compliant with IEC 61643-11:2011 / EN 61643-11:2022, and certified by CE & TUV.
As an experienced OEM/ODM factory and supplier, we provide wholesale, in bulk, and bulk buy options for global distributors.
Ideal for AC power lines, solar systems, control cabinets, and combiner boxes, and supports 35mm DIN rail installation.
| ■ Technical Data | |||||||
| IEC Electrical | 75 | 150 | 275 | 320 | 385 | 440 | |
| Nominal AC Voltage (50/60Hz) | Uo/ Un | 60 V | 120 V | 230 V | 230 V | 230 V | 400 V |
| Maximum Continuous Operating Voltage (AC) | Uc | 75 V | 150 V | 275V | 320 V | 385 V | 440 V |
| Nominal Discharge Current (8/20 μs) | In | 20 kA | 20 kA | 20 kA | 20 kA | 20 kA | 20 kA |
| Maximum Discharge Current (8/20 μs) | Imax | 40 kA | 40 kA | 40 kA | 40 kA | 40 kA | 40 kA |
| Voltage Protection Level | Up | 0.4 kV | 1 kV | 11.5 kV | 1.6 kV | 1.8 kV | 2 kV |
| Impulse Current (10/350μs) Iimp (L-N) | 7kA | ||||||
| Response Time | tA | < 25 ns | |||||
| Back-Up Fuse (max) | 125 A gL / gG | ||||||
| Short-Circuit Current Rating (AC) | ISCCR | 25kA/50kA | |||||
| TOV Withstand 5s | UT | 90V | 180V | 335V | 335V | 335V | 580V |
| TOV 120min | UT | 115V | 230V | 440V | 440V | 440V | 765V |
| mode | Withstand | Withstand | Safe Fail | Safe Fail | Safe Fail | Safe Fail | |
| Mechanical & Environmental | |||||||
| Operating Temperature Range | Ta | -40ºF to +158ºF [-40ºC to +70ºC] | |||||
| Permissible Operating Humidity | RH | 5%…95% | |||||
| Atmospheric pressure and altitude | 80k Pa … 106k Pa / -500 m…… 2000 m | ||||||
| Terminal Screw Torque | Mmax | 39.9 Ibf·in[4.5 Nm] | |||||
| Conductor Cross Section (max) | 2 AWG (Solid, Stranded) / 4 AWG (Flexible) | ||||||
| 35 mm² (Solid, Stranded) / 25 mm²(Flexible) | |||||||
| Mounting | 35 mm DIN Rail, EN 60715 | ||||||
| Degree of Protection | IP 20 (built-in) | ||||||
| Housing Material | Thermoplastic: Extinguishing Degree UL 94 V-0 | ||||||
| Thermal Protection | Yes | ||||||
| Operating State / Fault Indication | Green ok / Red defect | ||||||
| Remote Contacts (RC) RC Switching Capacity RC Conductor Cross Section (max) |
Optional AC: 250V / 0.5 A; DC: 250V / 0.1 A;125V / 0.2 A;75V / 0.5 A 16 AWG (Solid) / 1.5 mm²(Solid) |
||||||
