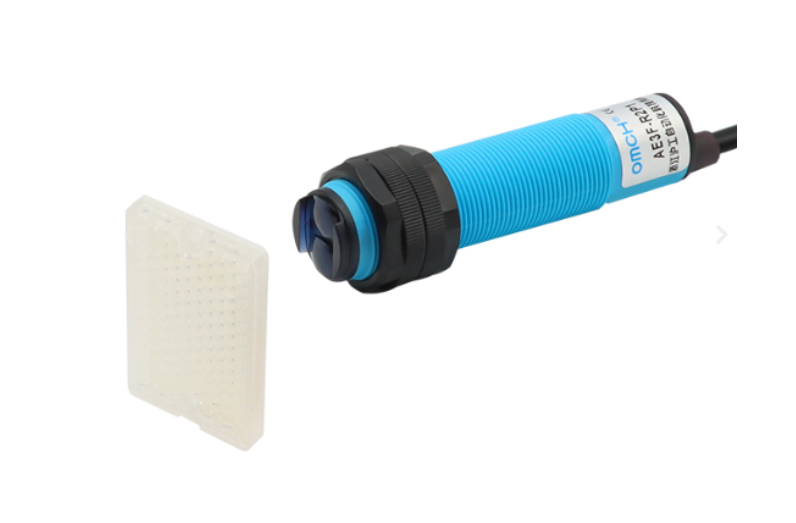

AE3F-5DN1.5L,
- Detection distance:5M ±10%
- Detection Distance Adjustment: Fixed
- Response Time:DC: 1ms AC: 30ms
- Operating Temperature Range:-30°C to 65°C
- IP Rating:IP67
- Certificates: CE
Product Specification
| Output Occurred | High-Performance | Standard | Detection distance | Testing Standard | |
| NPN | NO | AE3F-5DN1 . 5L | E3F-5DN1 . 5L | 5m±10% | Opaque |
| NC | AE3F-5DN2 . 5L | E3F-5DN2 . 5L | 5m±10% | Opaque | |
| NO+NC | AE3F-5DN3 . 5L | E3F-5DN3 . 5L | 5m±10% | Opaque | |
| PNP | NO | AE3F-5DP1 . 5L | E3F-5DP1 . 5L | 5m±10% | Opaque |
| NC | AE3F-5DP2 . 5L | E3F-5DP2 . 5L | 5m±10% | Opaque | |
| NO+NC | AE3F-5DP3 . 5L | E3F-5DP3 . 5L | 5m±10% | Opaque | |
| DC 2-Wire | NO | AE3F-5DA1 . 5A | E3F-5DY1 . 5LY | 5m±10% | Opaque |
| NC | AE3F-5DA2 . 5A | E3F-5DY1 . 5LY | 5m±10% | Opaque | |
