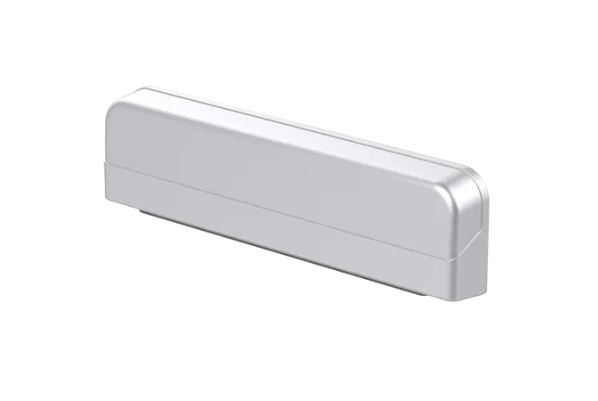

AUTONICS ADS-AE,
- Sensing type : Diffuse reflective type
- Mounting height : 2.0 to 2.7m
- Light source : Infrared LED(850nm modulated)
- Power voltage : 12-24VAC~ ±10% 50/60Hz
12-24VDC
- Power consumption : Max. 2VA(at 24VAC~)
- Control output : Relay(SPST(1a))
- Environment_Ambient illumination : Sunlight/Incandescent lamp: Max. 3,000lx(receiver illumination)
Data sheet Print
| Sensing type | Diffuse reflective type |
|---|---|
| Mounting height | 2.0 to 2.7m |
| Light source | Infrared LED(850nm modulated) |
| Power voltage | 12-24VAC~ ±10% 50/60Hz 12-24VDC |
| Power consumption | Max. 2VA(at 24VAC~) |
| Control output | Relay(SPST(1a)) |
| Front sensing area | 7.5°, 14.5°, 21.5°, 28.5°(4-step setting) |
| Left/Right sensing area | Eliminating each (1, 2, 3 -area), (7, 8, 9 -area) |
| Environment_Ambient illumination | Sunlight/Incandescent lamp: Max. 3,000lx(receiver illumination) |
| Environment_Ambient temperature | -20℃ to 50℃, storage: -20 to 70℃ |
| Protection structure | IP50 |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Cover color | Silver |
| Output holding time | Time delay approx. 0.5sec |
| Holding time of stationary sensing | Selectable 2sec, 7sec, 15sec(selectable by holding time setting switch) |
| Interference prevention | H, L(selectable by interference prevention switch) |
| Connection type | Connector wire connection |
| Accessories | Cable: 2.5m, Mounting screw: 2, Mounting template |
| Material | Case: Acrylonitrile butadiene styrene, Lens: Acryl, Lens cover: Acryl |
| Weight | Approx. 320g |
