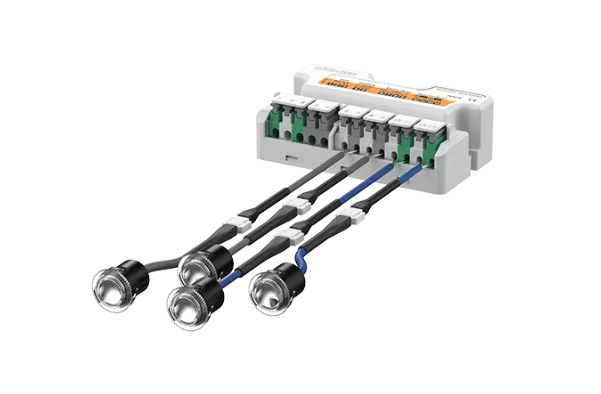

AUTONICS ADS-SE2,
- Sensing type : Through-beam type
- Sensing distance : 0 to 10m
- Light source : Infrared LED(850nm modulated)
- Power voltage : 12-24VAC~ ±10% 50/60Hz
12-24VDC
- Current consumption and Power consumption : Current Consumption: Max. 2VA, Power Consumption: Max. 50mA
- Control output : Relay(SPST(1a))
Data sheet Print
| Sensing type | Through-beam type |
|---|---|
| Sensing distance | 0 to 10m |
| Light source | Infrared LED(850nm modulated) |
| Power voltage | 12-24VAC~ ±10% 50/60Hz 12-24VDC |
| Current consumption and Power consumption | Current Consumption: Max. 2VA, Power Consumption: Max. 50mA |
| Control output | Relay(SPST(1a)) |
| Sensing Channel | 2-channel |
| Sensitivity adjustment | Set by button |
| Sensor cable length | 5m |
| Environment_Ambient illumination | Sunlight: Max. 100,000lx(receiver illumination) |
| Environment_Ambient temperature | -20 to 55℃, storage: -25 to 60℃ |
| Protection structure | IP30 |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Response time | Approx. 50ms(from light OFF) |
| Output holding time | Approx. 500ms(from light ON) |
| Available sensor set | 2-channel |
| Sensor cable | Ø2.4mm, 1-wire, 5m(AWG26, core diameter: 0.16mm, number of cores: 7, insulator out diameter: Ø1.32mm) |
| Material | Sensor – Holder: Acrylonitrile butadiene styrene, Lens: Polymethyl methacrylate, Lens guide: Polycarbonate, Nut: Polycarbonate Controller – Housing: Acrylonitrile butadiene styrene, Cover: Acrylonitrile butadiene styrene, Bolt: Steel chromium molybden |
| Accessories | Sensor 1set(ADS-SHP), Fixing bolt(M4×20) for controller: 2 |
| Weight | Approx. 450g(approx. 300g) |
