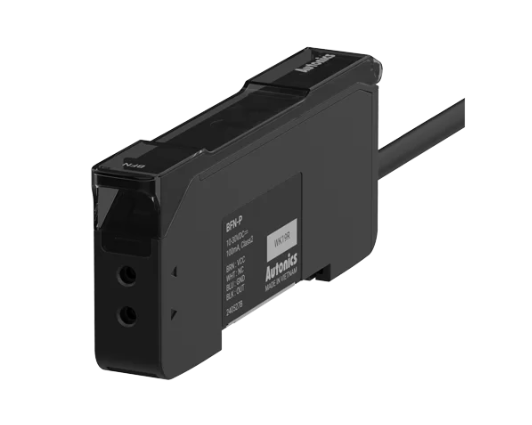

AUTONICS BFN-P,
Data sheet Print
| Light source | Red LED(660nm) |
|---|---|
| Sensitivity adjustment | Manual |
| Response time | 50 µs / 150 µs / 500 µs |
| Operation mode | Light ON / Dark ON |
| Timer setting | OFF Delay(40ms) |
| Indicator | Output indicator (orange LED) |
| Unit weight (packaged weight) | ≈ 71 g (≈ 135 g) |
| Power voltage | 10 – 30 VDC (ripple P-P: ≤ 10 %) |
| Current consumption | ≤ 35mA |
| Control output | PNP open collector output |
| Protection circuit | Surge protection circuit, output short over current protection circuit, reverse polarity protection |
| Insulation resistance | ≥ 20 MΩ (500 VDC megger) |
| Dielectric strength | Between the charging part and the case: 1,000 VAC~ 50/60 Hz for 1 minute |
| Vibration | 1.5 mm double amplitude at frequency of 10 to 55 Hz in each X, Y, Z direction for 2 hours |
| Shock | 500m/s²(approx. 50G) in each X, Y, Z direction for 3 times |
| Environment_Ambient illumination | Sunlight: ≤ 30,000 lx, incandescent lamp: ≤ 20,000 lx |
| Environment_Ambient temperature | -10 to 50℃, storage: -20 to 70℃ |
| Environment_Ambient humidity | 35 to 85%RH, Storage: 35 to 85%RH (no freezing or condensation) |
| Protection structure | IP50 (IEC standard) |
| Connection | Cable type |
| Material | Case, cover: PC |
