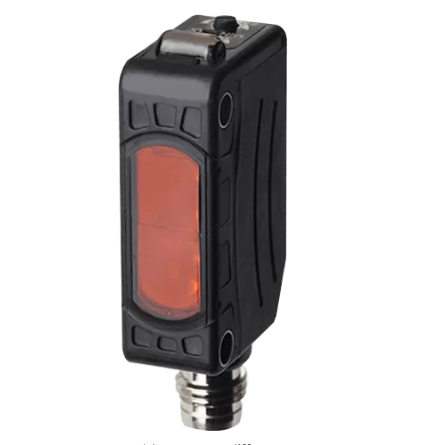

AUTONICS BJ3M-PDT-C-P,
Data sheet Print
| Sensing type | Retroreflective type(built-in polarizing filter) |
|---|---|
| Sensing distance | 3m(MS-2A) |
| Sensing target | Opaque material of min. Ø75mm |
| Light source | Red LED(660nm) |
| Response time | Max. 1ms |
| Power voltage | 12-24VDC  ±10%(ripple P-P: max. 10%) |
| Current consumption | Max. 30mA |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON/Dark ON(set by switch) |
| Control output | PNP open collector |
| Connection type | Connector type(M8) |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent, lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -25 to 55℃, storage: -40 to 70℃ |
| Protection structure | IP67 |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | Case: Polycarbonate+Acrylonitrile butadiene styrene, LED Cap: Polycarbonate, Sensing part: Polymethyl methacrylate, Bracket: SUS304(steel use stainless 304), Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum, Sleeve: Brass, Ni-plate |
| Accessories_Common | Fixing bracket, M3 Bolts: 2, M3 Nuts: 2, Adjuster driver |
| Accessories_Individual | Reflector(MS-2A) |
| Weight | Approx. 55g (approx. 30g) |
