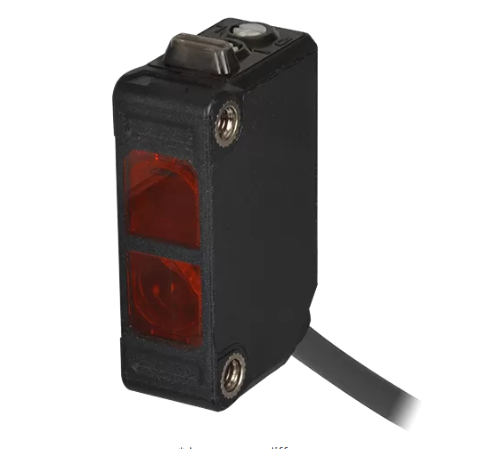

AUTONICS BJR3M-PDT-P,
Data sheet Print
| Oil resistant/oil proof | Oil resistant type |
|---|---|
| Sensing type | Retroreflective type(built-in polarizing filter) |
| Sensing distance | 3m |
| Sensing target | Opaque material of min. Ø75mm |
| Light source | Red LED(660nm) |
| Response time | Max. 1ms |
| Power voltage | 10-30VDC  ±10%(ripple P-P: max. 10%) |
| Current consumption | Max. 30mA |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON/Dark ON(set by switch) |
| Control output | PNP open collector |
| Connection type | Ø4mm, 3-wire, 2m (emitter of through-beam type: Ø4mm, 2-wire, 2m) (AWG26, core diameter: 0.52mm, number of cores: 20, insulator out diameter: Ø1mm) |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -25 to 60℃, storage: -40 to 70℃ |
| Protection structure | IP67 (IEC standard), IP67G (JEM standard) |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | Case: Acrylonitrile butadiene styrene, LED Cap: PA12, Lens cover: Polymethyl Methacrylate Acrylic |
| Accessories_Common | Mounting bracket, M3 bolt: 2, adjustment screwdriver |
| Accessories_Individual | Reflector(MS-2S) |
| Weight | Approx. 115g(approx. 50g) |
