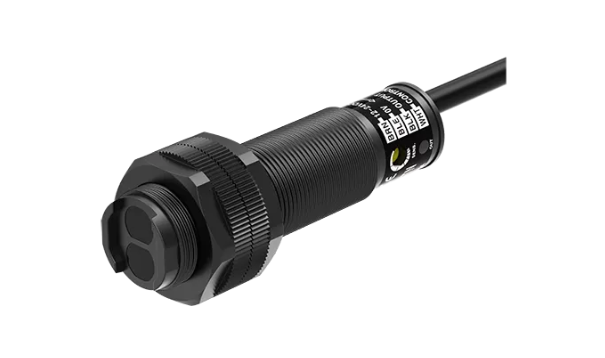

AUTONICS BRP200-DDTN-P,
Data sheet Print
| Sensing type | Narrow beam reflective type |
|---|---|
| Sensing distance | 200mm |
| Sensing target | Opaque, Translucent material |
| Light source | Infrared LED(850nm) |
| Response time | Max. 1ms |
| Power voltage | 12-24VDC  ±10%(ripple P-P: max. 10%) |
| Current consumption | Max. 45mA |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON/Dark ON(set by control wire) |
| Control output | PNP open collector |
| Connection type | Cable type(Ø5, 2m) |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -10 to 60℃, storage: -25 to 75℃ |
| Protection structure | IP66 |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Hysteresis(distance) | Max. 20% at rated sensing distance |
| Material | Case-Polyamide(black), Sensing part-Polycarbonate lens |
| Accessories | M18 fixing nut: 2, adjustment screwdriver |
| Weight | Approx. 140g(approx. 100g) |
