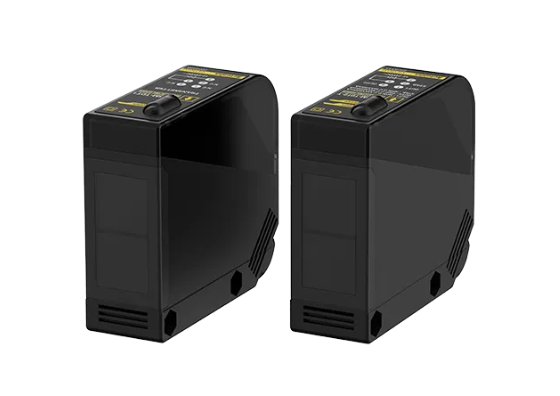

AUTONICS BX15M-TDT-T,
Data sheet Print
| Sensing type | Through-beam type |
|---|---|
| Sensing distance | 15m |
| Sensing target | Opaque material of min. Ø15mm |
| Light source | Infrared LED(850nm) |
| Response time | Max. 1ms |
| Power voltage | 12-24VDC  ±10%(ripple P-P: max. 10%) |
| Current consumption | Emitter/Receiver: Max. 50mA |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON/Dark ON(set by switch) |
| Control output | NPN, PNP open collector simultaneous output |
| Timer function | Timer Function |
| Connection type | Terminal block type |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -20 to 55℃, storage: -25 to 70℃ |
| Protection structure | IP65(IEC standard) |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | Case, Lens cover: Polycarbonate, Sensing part: Acrylic, Bracket: Steel plate cold commercial, Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum |
| Accessories_Common | Adjuster driver, Fixing bracket, Bolts, Nuts |
| Weight | Approx. 212g |
