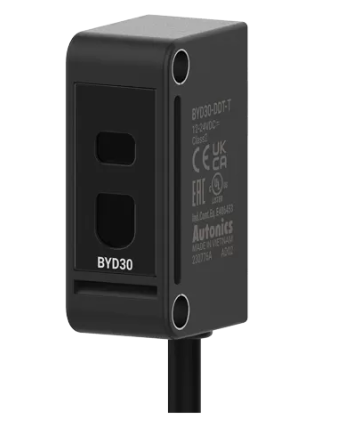

AUTONICS BYD30-DDT-T,
Data sheet Print
| Sensing type | Convergent reflective type |
|---|---|
| Sensing distance | 10 to 30mm |
| Sensing target | Opaque, Translucent material |
| Response time | Operation: Max. 3ms, Return: Max. 100ms |
| Light source | Infrared LED |
| Timer function | Timer Function |
| Operation mode | Light ON |
| Weight | Approx. 75g(approx. 38g) |
| Power voltage | 12-24VDC  ±10%(ripple P-P: max. 10%) |
| Current consumption | Max. 35mA |
| Control output | NPN open collector |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent. lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -20 to 65℃, storage: -25 to 70℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP50 |
| Connection type | Cable type(Ø3.5, 2m) |
| Material | Case: PC, sensing part: PC, bracket: SPCC, bolt: SCM, nut: SCM, sleeve: Brass, Ni-plate |
