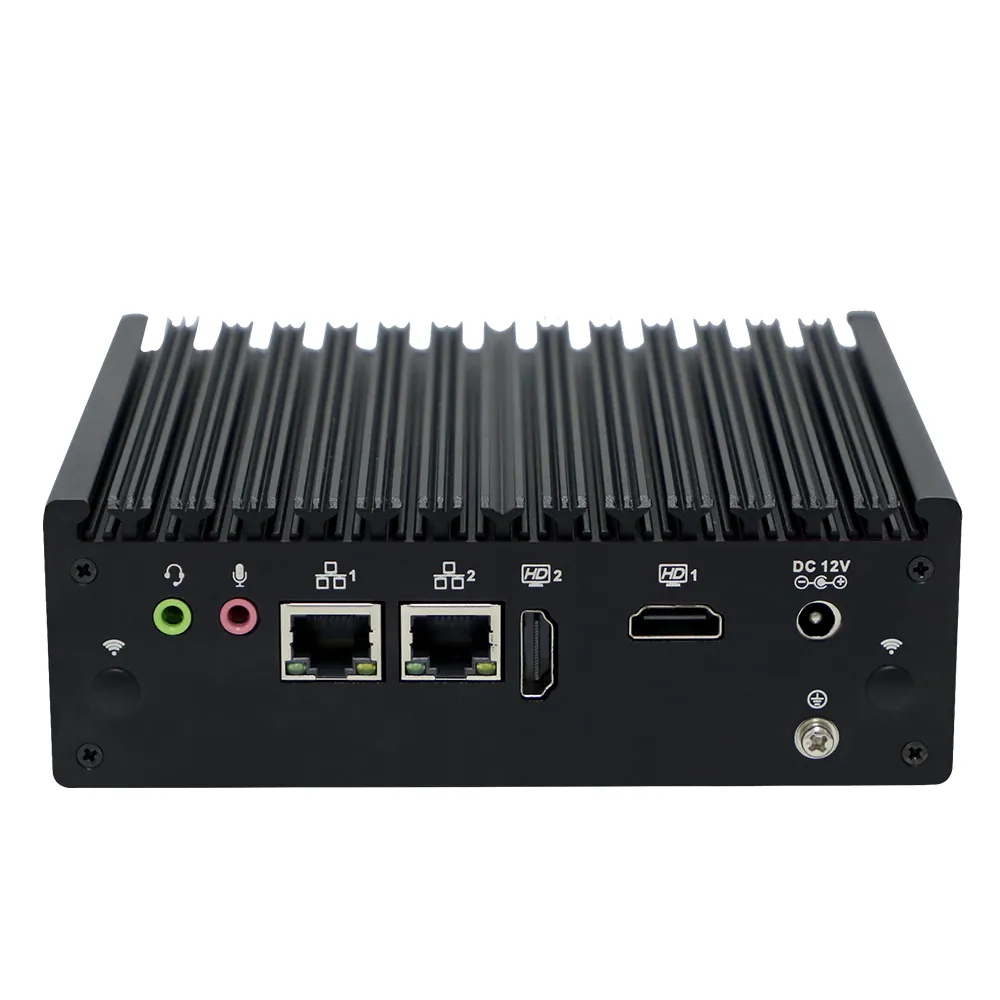

Fanless N5095 Mini PC
Intel Celeron N5095 Mini PC,
1*DDR4 2933 SODIMM, Max 16 GB,
1*M.2 2280 slot,1*2.5 inch HDD/SSD,
2*Realtek 8111H Gigabit Ethernet,
2 HD Resolution Max 4096×2160 @ 60Hz,
4*USB3.1 , 2*DB9 COM RS 232.
| System Parameter | |
| Model | SPC-N5095-2L |
| Processor | Intel Celeron N5095（quad core four threads,2.0GHz,Max to 2.9GHz）； |
| Chipset | Intel(R) UHD Graphics |
| Memory | 1*DDR4 2933 SODIMM, Max 16 GB |
| BIOS | AMI UEFI BIOS |
| Display Port | 2*HD (Support Synchronous/asynchronous dual display,Resolution Max 4096×2160 @ 60Hz) |
| Storage | 1xM.2 2280 slot,1*2.5 inch HDD/SSD |
| Expansion | 1xM.2 2280 M-key slot (Only support NVME protocol,PCIE3.0x2）
1xM.2 2230 E-key slot（support WIFI, BT） |
| Front I/O | 1*Power switch , 4*USB3.1 ,2*DB9 COM RS 232 |
| Rear I/O | 1*DC , 2*HDMI , 2*RJ45 Lans , 1* Mic ,1*Line Out |
| Network | 2xRealtek 8111H Gigabit Ethernet |
| Input Voltage | DC 12V Input； |
| Certificates | CE、 CCC、 FCC Class A、 ROHS |
| Other Function | Auto power on when there is electricity、Timing boot、Wake on LAN、PXE boot, TPM2.0 security encryption |
| Application | Industrial automation, medical, logistics and transportation, warehousing, electronic education etc,. |
| Structure Parameter | |
| Color | Black 【Any color can be customized】 |
| Material | High-quality all aluminum，surface anodic oxidation |
| Dimension | 148 * 127 * 48.5 mm mm |
| Weight | 0.72 kg |
| Environmental Parameter | |
| Work Temp | 0℃ ～ +40℃（Commercial HDD），0℃ ～ +50℃（Industrial SSD），Surface air flow |
| Work Humidity | 5% ～ 95% non-condensing |
