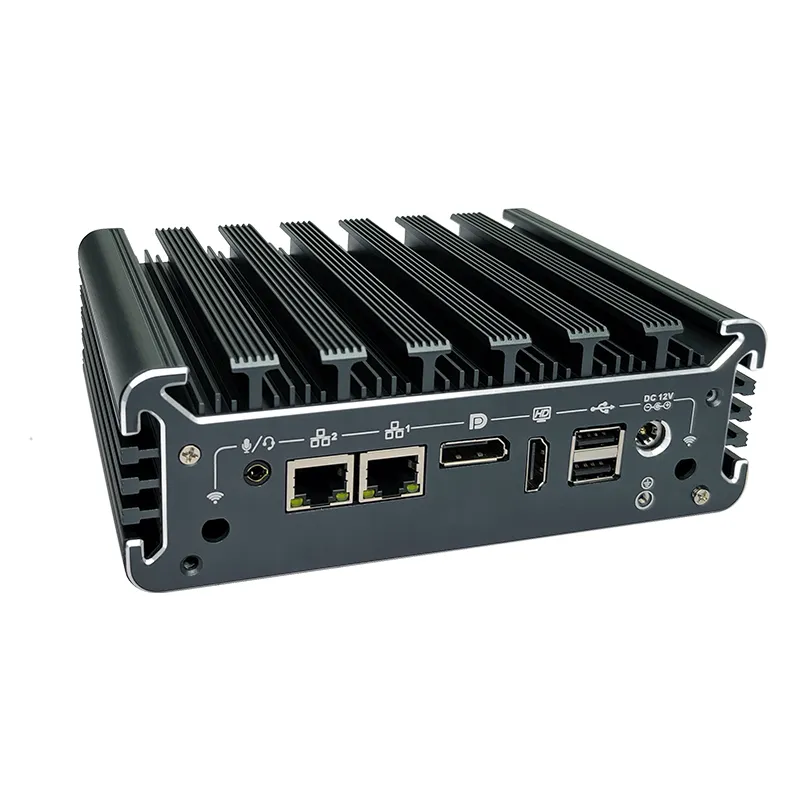

Fanless Dual Lan Mini Pc I5 Intel 7th Gen Core i5,
with DDR4 2133 RAM slot Max 32GB,
and Intel Iris Plus Graphics 640.
| System Parameter | |
| Model | N3122 Mini Fanless PC |
| Processor | Intel Core i5 7360U（Dual core quad threads，2.3GHz，Max turbo 3.6GHz） |
| RAM | 1*DDR4 2133 SODIMM RAM slot，Max support 32GB |
| Display Chip | Intel Iris Plus Graphics 640 |
| Display Port | 1*DP，1*HD-MI |
| Storage | 1*M.2 2280 slot，1*2.5” HDD，Support RAID 0/1 |
| Expansion | 1*M.2 2280 M-Key slot（Support SATA protocol and NVME protocol）
1*MINI PCIE slot（WIFI/3G/4G Optional），SIM slot on front plate |
| I/O | 2*COM（COM1, COM2 RS232 or RS485 mode Optional, 4*USB3.0，1*Power Switch，1*SIM slot 1*DC，2*USB2.0，1*HDMI，1*DP, |
| Network | 2*Intel i226-V 2.5G 1000/2500M LAN |
| Input Voltage | Support DC 12V Input； |
| Certificates | CE、 CCC、 FCC Class A、 ROHS |
| Other Function | Auto power on when there is electricity, Timing boot、Wake on LAN, PXE boot、Watchdog |
| Application | Industrial Automation, Medical, Logistics Transportation, Warehouse, Electronic Education etc. |
| Structure Parameter | |
| Color | Black【Any color can be customized】 |
| Material | High-quality all aluminum，surface anodic oxidation |
| Dimension | 166 * 127 * 55.5 mm |
| Weight | 1.16kg |
| Environmental Parameter | |
| Work Temp | 0℃ ～ +40℃（Commercial HDD），-20℃ ～ +50℃Industrial SSD），Surface air flow |
| Work Humidity | 5% ～ 95% non-condensing |
