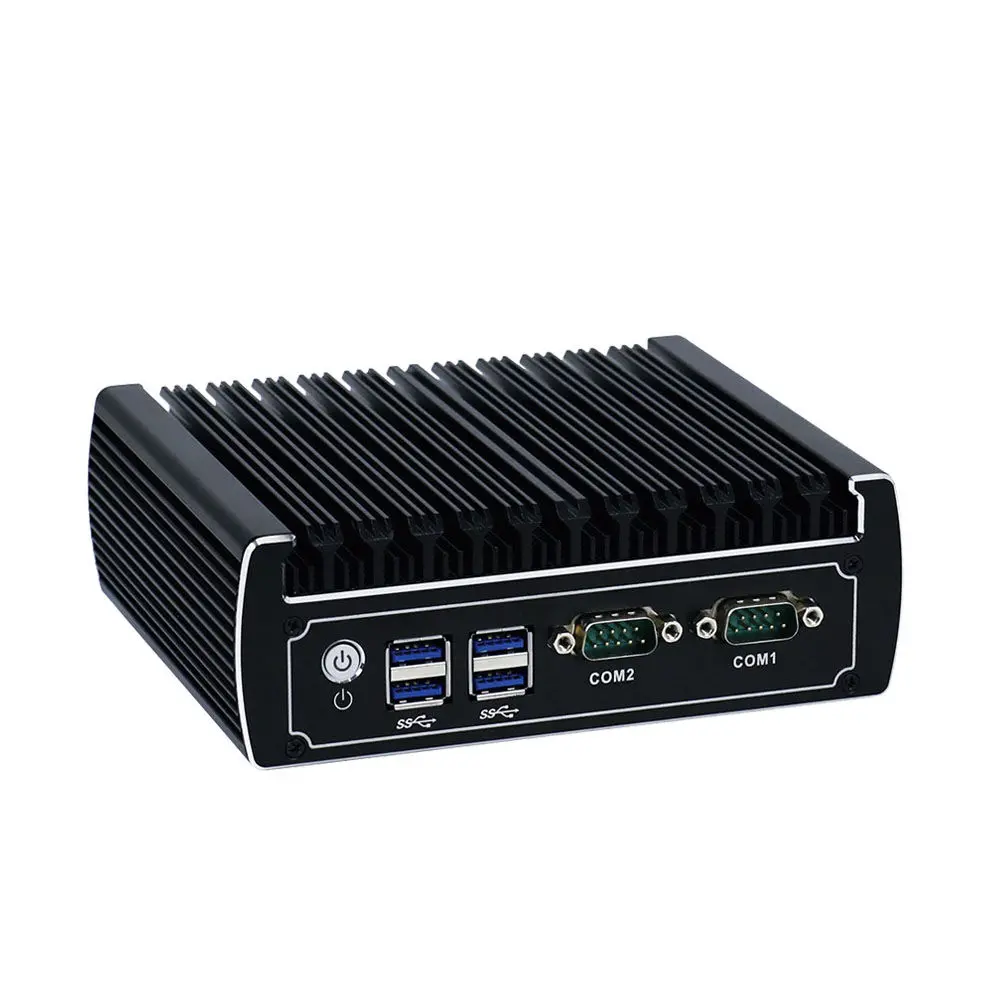

N13 Industrial Fanless PC System,
Intel Core i3 8130U DDR4 2400/2666MHZ (4GB/8GB/16GB) Max: 16GB,
and Support 1*M.2 1* 2.5 inchs SATA WIFI/3G/4G (choose 1 from 3).
| System Parameter | |
| Model | N13 Fanless System |
| Processor | Intel Core i3 8130U |
| Dual core，2.2GHZ，Turbo: 3.4GHZ , TDP:15W | |
| Memory | Support 1*SODIMM DDR4 2400/2666MHZ (4GB/8GB/16GB) MAX: 16GB |
| CPU Architecture | KabyLake-U |
| Display Chip | Integrated Intel HD Graphics 620 |
| Display Port | 1*DP，1*HDMI（Support synchronous or asynchronous dual display） |
| Storage | Support 1*M.2 2280 Slot，1*2.5”HDD |
| Expansion | Support 1*M.2 2280 slot（Compatible with PCIE X4 and SATA signal）
Support 1*MINI PCIE (WIFI/3G/4G Optional), SIM Slot on rear plate |
| I/O | 4*USB3.0,1*Power Switch, 2*COM(it is optional, we also can remove it )2*RJ45 1000M Lan,2*USB2.0, 1*HDMI，1*DP, 1*two-in-one Audio, 1*DC 12V Port |
| Network | Support 1*MINI PCIE (WIFI/3G/4G Optional), SIM Slot on rear plate |
| Input Voltage | Support DC 12V Input； |
| Certificates | CE、 CCC、 FCC Class A、 ROHS |
| Other Function | Auto power on when there is electricity, and Timing boot、Wake on LAN、PXE boot, Watchdog（0～255 level）(Standard version doesn’t set these function) |
| Application | Industrial Automation, Medical, Logistics Transportation, and Warehouse, Electronic Education etc. |
| Structure Parameter | |
| Color | Black【Any color can be customized】 |
| Material | Aluminum Alloy，sheet metal structure |
| Dimension | 155 * 126.5 * 52.5mm |
| Weight | 1.6kg |
| Environmental Parameter | |
| Work Temp | -10℃ ～ +50℃（Commercial HDD），-20℃ ～ +50℃Industrial SSD），Surface air flow |
| Work Humidity | 5% ～ 95% non-condensing |
