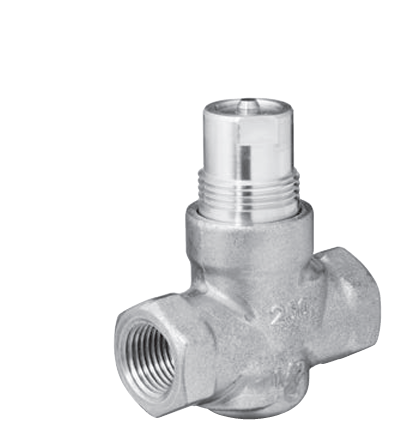

Siemens 599-02030 Two-way Valves,
The Powermite MT Series Two-way Globe Valves are designed to work,
with either a pneumatic or electronic actuator,
with a 7/32-inch (5.5 mm) stroke. Compatible actuators deliver a minimum of 67 lbf. (300 N) of force.
Applications
The Powermite MT Series Globe Valves are used
for hot or chilled water or low pressure steam (<15 psig
with stainless-steel trim only) control on convectors, fan
coil units, unit conditioners, radiation, reheat coils, and
similar terminal units.
Recommendation:
Only use the MT Series Valve Actuators. When using
this valve with a pneumatic actuator, note that MT valve
bodies have the spring in the body, rather than the
actuator. To order the correct valve body, select the
proper spring range.
Alternate spring ranges for pneumatic sequencing are
available as valve and actuator factory assemblies only.
