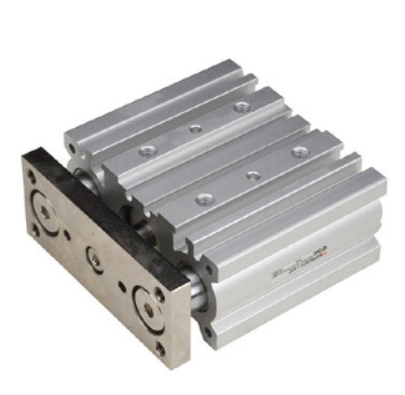

SMC MGP-Z Standard Guided Cylinder Stroke Options

SMC MGP-Z Standard Guided Cylinder Stroke Options,

The MGPM/L-XC8 is an adjustable extend stroke type where the MGPM/L-XC9 allows for stroke adjustment on the retract stroke.
The MGPM/L-XB13 is a compact body actuator integrated,
with internal guide shafts with the ability to operate smoothly at low speeds (5 to 50mm/s).

• Bore sizes: 12, 16, 20, 25, 32, 40, 50, 63, 80, 100mm
• XC8 and XC9 Stroke adjustment ranges are 0-10mm or 0-25mm
• XB13 cylinder speed range is 5 to 59mm/sec
• Non-rotating accuracy: +/-0.08° (12 & 16 bore)
• Non-rotating accuracy: +/-0.07° (20 & 25 bore)
• Non-rotating accuracy: +/-0.06° (32 & 40 bore)
• Non-rotating accuracy: +/-0.05° (50 & 63 bore)
• Non-rotating accuracy: +/-0.04° (80 & 100 bore)
• Rubber bumpers as standard
• Auto switch capable
