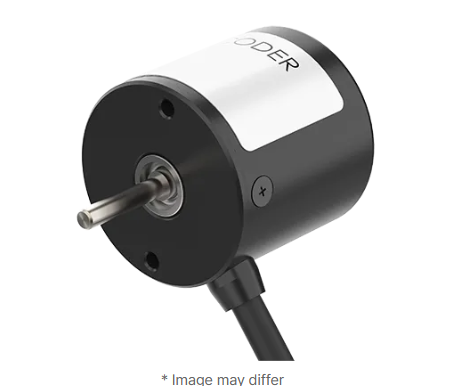

AUTONICS E20S2-360-3-N-12-S,
Data sheet Print
| Shaft outer diameter | Ø2mm |
|---|---|
| Max. response frequency | 100kHz |
| Max. allowable revolution | 6000rpm |
| Starting torque | Max. 5gf.cm(max. 0.00049N.m) |
| Resolution | 360P/R |
| Output phase | A, B, Z |
| Control output | NPN open collector |
| Power voltage | 12VDC  ±5%(ripple P-P: max. 5%) |
| Connection type | Radial cable type |
| Protection structure | IP50 |
| Environment_Ambient temperature | -10 to 70℃, storage: -20 to 80℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Ø2mm coupling |
| Weight | Approx. 35g |
