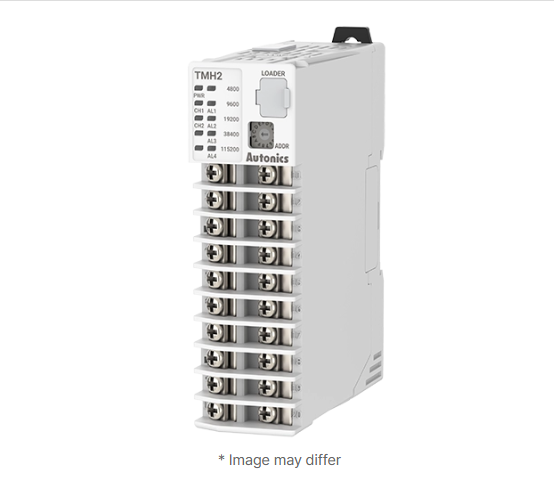

AUTONICS TMH2-22C,
- No. of channel : 2-channel
- Input type_TC : K(CA), J(IC), E(CR), T(CC), B(PR), R(PR), S(PR), N(NN), C(TT), G(TT), L(IC), U(CC), Platinel II
- Input type_RTD : DPt100Ω, JPt100Ω, DPt50Ω, Cu100Ω, Cu50Ω, Nikel 120Ω 3-wire type(permissible line resistance max. 5Ω)
- Input type_Analog : Voltage: 0-100mVDC
, 0-5VDC , 1-5VDC , 0-10VDC
Current: 0-20mA, 4-20mA - Input type_CT : 0.0-50.0A(primary current measurement range) ※CT ratio=1/1000, Measured accuracy: ±5% F.S. ±1-digit
- Input type_Digital inputs : Connect input: ON – max. 1kΩ, OFF – min. 100kΩ
Solid-state input: ON – max. residual voltage 0.9V, OFF – max. leakage current 0.5mA
Outflow current: approx. 0.3mA per input - Control output_Current : Selectable DC 4-20mA or DC 0-20mA(load resistance max. 500Ω)
- Alarm output : 250VAC~ 3A 1a
- Communication : Modbus RTU
