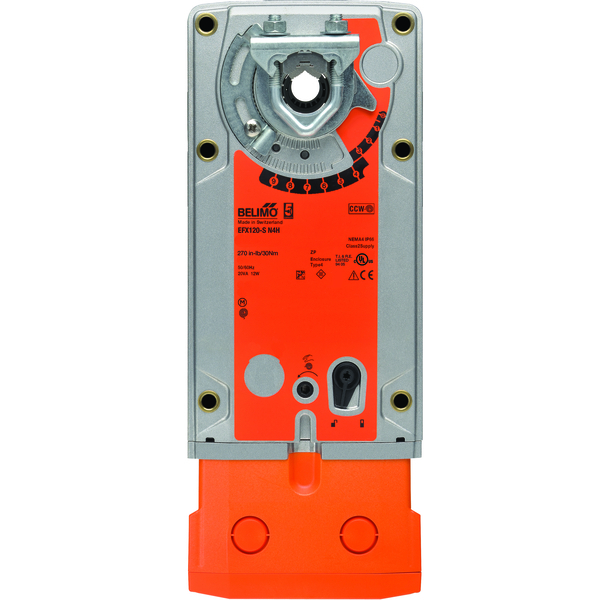

EFX120-S N4H
Damper Actuator, 270 in-lb [30 Nm], Spring return, AC 100…240 V, On/Off, 2x SPDT, NEMA 4
Specifications
- Voltage AC/DC
- AC 100…240 V
- Power Consumption (Running)
- 9.5 W
- Power Consumption (Holding)
- 4.5 W
- Power Consumption For Wire Sizing
- 21 VA
- Auxiliary Switches
- 2x SPDT
- Torque
- 270 in-lb [30 Nm]
- Control Type
- On/Off
- Direction Of Motion Motor
- selectable by ccw/cw mounting
- Direction of Rotation (Fail-Safe)
- Reversible with cw/ccw mounting
- Manual Override
- 5 mm hex crank (3/16″ Allen), supplied
- Angle of Rotation
- 95°
- Running Time (Motor)
- 75 s / 90°
- Running Time (Fail-safe)
- <20 s
- Degree Of Protection NEMA
- NEMA 4
- Enclosure Type
- UL Enclosure Type 4
- Ambient Temperature
- -40…122°F [-40…50°C]
| EFX120 | Damper Actuator | Air | Configurable Damper Actuator, 270 in-lb [30 Nm], Spring return, AC 100…240 V / DC 100…125 V, On/Off |
| EFX120-S | Damper Actuator | Air | Configurable Damper Actuator, 270 in-lb [30 Nm], Spring return, AC 100…240 V / DC 100…125 V, On/Off, 2 x SPDT |
| EFX120-S N4 | Damper Actuator | Air | Configurable Damper Actuator, 270 in-lb [30 Nm], Spring return, AC 100…240 V / DC 100…125 V, On/Off, 2 x SPDT, NEMA 4 |
| EFX120-S N4H | Damper Actuator | Air | Configurable Damper Actuator, 270 in-lb [30 Nm], Spring return, AC 100…240 V / DC 100…125 V, On/Off, 2 x SPDT, NEMA 4 |
| EFX120-SR N4 | Damper Actuator | Air | Configurable Damper Actuator, 270 in-lb [30 Nm], Spring return, AC 100…240 V / DC 100…125 V, 2…10 V, NEMA 4, modulating |
| EFX120-SR-S N4 | Damper Actuator | Air | Configurable Damper Actuator, 270 in-lb [30 Nm], Spring return, AC 100…240 V / DC 100…125 V, 2…10 V, 2 x SPDT, NEMA 4, modulating |
| EFX24 | Damper Actuator | Air | Configurable Damper Actuator, 270 in-lb [30 Nm], Spring return, AC/DC 24 V, On/Off |
| EFX24-MFT | Damper Actuator | Air | Configurable Damper Actuator, 270 in-lb [30 Nm], Spring return, AC/DC 24 V, 2…10 V, MFT/programmable |
| EFX24-MFT-S | Damper Actuator | Air | Configurable Damper Actuator, 270 in-lb [30 Nm], Spring return, AC/DC 24 V, 2…10 V, 2 x SPDT, MFT/programmable |
| EFX24-MFT-S N4 | Damper Actuator | Air | Configurable Damper Actuator, 270 in-lb [30 Nm], Spring return, AC/DC 24 V, 2…10 V, 2 x SPDT, NEMA 4, MFT/programmable |
| EFX24-MFT-S N4H | Damper Actuator | Air | Configurable Damper Actuator, 270 in-lb [30 Nm], Spring return, AC/DC 24 V, 2…10 V, 2 x SPDT, NEMA 4, MFT/programmable |
| EFX24-S | Damper Actuator | Air | Configurable Damper Actuator, 270 in-lb [30 Nm], Spring return, AC/DC 24 V, On/Off, 2 x SPDT |
| EFX24-S N4 | Damper Actuator | Air | Configurable Damper Actuator, 270 in-lb [30 Nm], Spring return, AC/DC 24 V, On/Off, 2 x SPDT, NEMA 4 |
| EFX24-S N4H | Damper Actuator | Air | Configurable Damper Actuator, 270 in-lb [30 Nm], Spring return, AC/DC 24 V, On/Off, 2 x SPDT, NEMA 4 |
| EFX24-SR | Damper Actuator | Air | Configurable Damper Actuator, 270 in-lb [30 Nm], Spring return, AC/DC 24 V, 2…10 V, modulating |
| EFX24-SR N4 | Damper Actuator | Air | Configurable Damper Actuator, 270 in-lb [30 Nm], Spring return, AC/DC 24 V, 2…10 V, NEMA 4, modulating |
| EFX24-SR-S | Damper Actuator | Air | Configurable Damper Actuator, 270 in-lb [30 Nm], Spring return, AC/DC 24 V, 2…10 V, 2 x SPDT, modulating |
| EFX24-SR-S N4 | Damper Actuator | Air | Configurable Damper Actuator, 270 in-lb [30 Nm], Spring return, AC/DC 24 V, 2…10 V, 2 x SPDT, NEMA 4, modulating |
| EFX24-SR-S N4H | Damper Actuator | Air | Configurable Damper Actuator, 270 in-lb [30 Nm], Spring return, AC/DC 24 V, 2…10 V, 2 x SPDT, NEMA 4, modulating |
