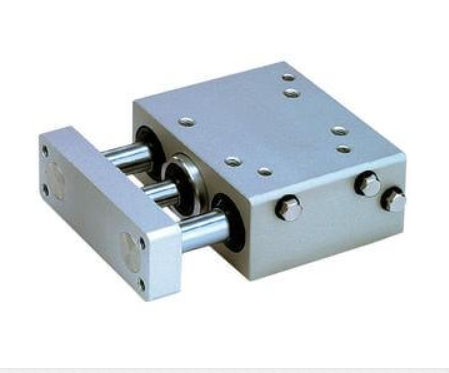

SMC HYG Hygienic Cylinder with Guide Rods,
SMC’s hygienic design cylinders, series HY, offers significantly improve water resistance by adopting a new lubricating construction.
The cylinder’s flat configuration (grooves for auto switches and holes for cushion needles,
etc. have been eliminated) allow the surface to be wiped off easily.
- Bore sizes: 20, 25, 32, 40, 50, 63 mm
- Stroke lengths (20, 25 bore): 20, 30, 40, 100, 150, 200 mm
- Stroke lengths (32, 40, 50, 63 bore): 25, 50, 100, 150, 200 mm
- FKM, fluoropolymer seal option
- NSF-H1 food grade grease option
- Auto switch capable
