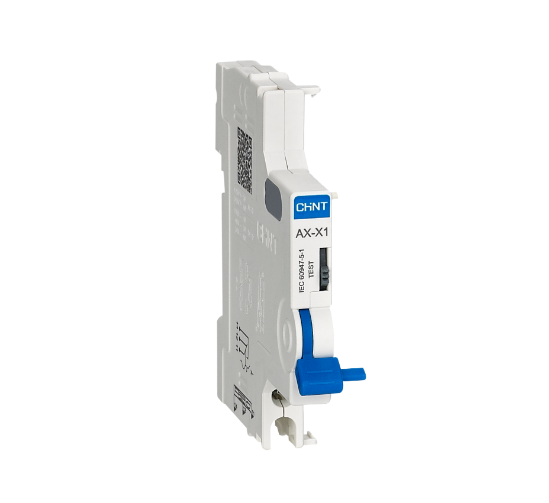

Shop for CHINT AX-X1 Auxiliary Contact status (ON/OFF)

CHINT AX-X1 Auxiliary Contact status (ON/OFF),

it is designe to provide remote indication of circuit breaker status (ON/OFF) for NXB-63 and NXB-40 series breakers.
furthermore It enables long-distance signal transmission, helping improve monitoring, control, and safety in electrical systems.
in addition it is Build to IEC60947-5 standards and certified for CE and RoHS, the AX-X1 offers high reliability with a ≥10,000-cycle lifespan, a compact structure,
and easy installation on TH35-7.5 DIN rails, making it ideal for modern low-voltage distribution panels.

furthermore Function: Provides long-distance signal indication of circuit breaker ON/OFF status.
moreover Applicable Devices: NXB-63, NXB-40 series circuit breakers.
and Standards Compliance: IEC60947-5
however Certifications: CE, RoHS
similarly Utilization Category:
- AC-12
- DC-12
Rated Operating Voltage (Ue):
- AC 415V
- AC 240V
- DC-130V
- DC-48V
- DC-24V
on the other hand it is Rate Operating Current (Ie):
- AC 415V: 3A
- AC 240V: 6A
- DC-130V: 1A
- DC-48V: 2A
- DC-24V: 6A
specifically Action Characteristics:
- When auxiliary contact open, terminals 11–12 connected.
- When auxiliary contact closed, terminals 11–14 connected.
Operating Life: ≥ 10,000 cycles
likewise Installation:
- Mountable with NXB-63/NXB-40 breakers.
- Attach to the left side of the breaker and mount both on TH35-7.5 DIN rail.
later Dimensions (mm):
- Height: 75.7
- Width: 9
- Depth: 76.7
finally Mounting hole spacing: 42.5 × 31
