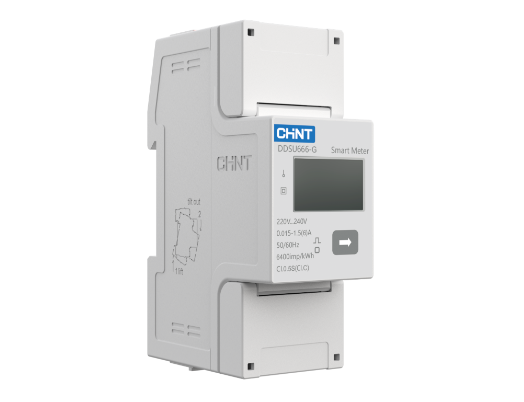

CHINT DDSU666-G 1.5(6)A 2P,
-Bi-directional Measurement for kW and kW
-Multi Parameter measurement
-Modbus-RTU communication
-Din Rail Mounted
-Active power refresh rate ≤ 50m
Measurement：
-Compliance with EN 61326-1 EN 61010-1 standard
-Connection type: 1P2W(Single phase two wire)
-Access Method: Via CT
Accuracy:
-Voltage: ±0.5%
-Current/Power: ±0.5%
-Electric energy: ±0.5%
Voltage:
-Nominal Voltage(Un): 220V…240V
-Operating Voltage: 198V ～ 253V
-Limited Voltage:100V ～ 276V
Current:0.015-1.5(6)A
-Frequency: 50Hz or 60Hz
-Display Interface:LCD, with backlight
-LED Indication: Pluse Output
Communications:
– Protocols: ModBus-RTU
-Interface: RS485
-Baud rate: 1200 / 2400 / 4800 / 9600bps(default) 19200/115200 bps(customizable)
Measured Values:
-Import/Export kWh, kvarh
-Instantaneous kW, kvar, kVA
-Irms, Vrms, Frequency, Power factor, etc
Environmental:
-Operating Temperature : -25℃～ +55℃
-Storage Temperature : -40℃～ +70℃
-Relative Humidity: ≤95%(non-condensing)
-Atmospheric Pressure: 63.0kPa～106.0kPa
Dimension:
-36mm×100mm×65.5mm
-Mounting Type:DIN35mm
