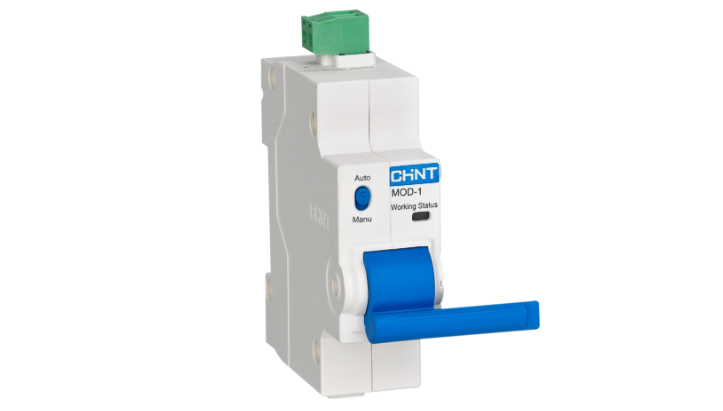

CHINT MOD-1 Motor-driven Mechanism

CHINT MOD-1 Motor-driven Mechanism,
is an intelligent electric operating accessory designe for NXB-125 1P circuit breakers.
in addition It allows remote control of breaker opening and closing, enhancing automation, safety,
and efficiency in power systems. With an RS485 Modbus communication interface, MOD-1 enables integration with industrial monitoring platforms.
furthermore Its compact 27 mm width, fast action time,
and 10,000-cycle mechanical life make it ideal for tower base stations, industrial automation,
finally and smart energy systems

• moreover Function: Enables remote opening and closing of circuit breakers; allows both manual and automatic operation
• but Compatible Device: NXB-125 1P circuit breakers
• Rated Operating Voltage (Ue): DC 48–60V
• first Ambient Temperature Range: –5°C to +40°C
• second Humidity Resistance: Up to 50% at +40°C; 90% at +20°C
• next Altitude: ≤ 2000 m
• then Action Time:
  • Opening ≤ 0.2 s
  • Closing ≤ 0.5 s (excluding delay)
• to illustrate Product Width: 27 mm
• Installation Mode: DIN rail (guide rail) mounting
• Mechanical Life: 10,000 operations (3 times/min)
• Insulation Voltage: ≥ 500 V
• Mode of Action: Remote control with manual/automatic toggle and indicator light
• for instance Communication Function: RS485 interface; Modbus protocol, baud rate 9600 bps; address code 1–247
• specifically Indicator Light Status:
  • On: Normal operation
  • Off: No power or manual mode active
• meanwhile Manual/Automatic Operation:
  • In automatic mode: remote control is active
  • In manual mode: breaker can operate locally without automatic response
• before Dimensions (mm):
  • Height: 91.5
  • Width: 27
  • Depth: 75
• later Mounting hole spacing: 45 × 65
• finally Certification: RoHS compliant
