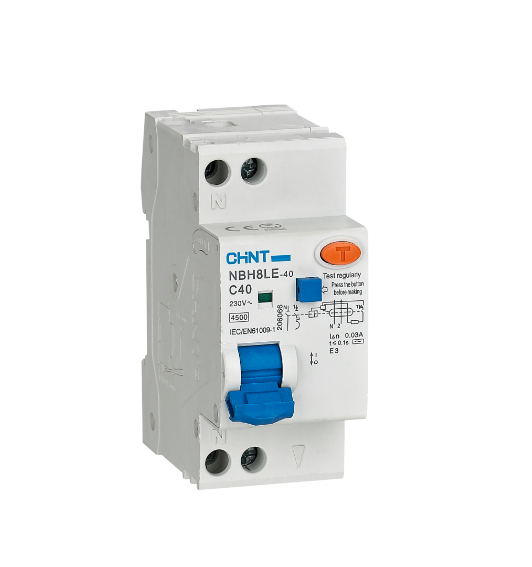

CHINT NBH8LE Residual Current Operated Circuit Breaker

CHINT NBH8LE Residual Current Operated Circuit Breaker,
with Over-current Protection (Electronic) ensures comprehensive personnel and fire protection by detecting leakage, overload,
and short-circuit faults in electrical systems.
Designe for residential, commercial, and industrial environments, it combines earth-leakage protection,
with C-curve thermal-magnetic over-current protection.
Compact and reliable, it meets IEC/EN 61009-1 standards and delivers up to 20,000 mechanical operations,
making it ideal for safe and efficient low-voltage distribution.

• Function:
  • Personnel and fire protection
  • Cable and line protection against overloads and short-circuits
• Standard Compliance: IEC/EN 61009-1
• Type: AC (detects sinusoidal alternating residual currents)
• Thermo-magnetic Release Characteristic: C curve (5–10 In)
• Rated Current (In): 1A, 2A, 3A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A
• Number of Poles: 1P + N
• Rated Voltage (Ue): 230/240 V AC
• Rated Sensitivity (I△n): 10 mA, 30 mA
• Rated Short-Circuit Capacity (Icn): 4.5 kA / 6 kA
• Rated Residual Making & Breaking Capacity (I△m): 500 A
• Break Time under I△n: ≤ 0.1 s
• Rated Frequency: 50/60 Hz
• Rated Impulse Withstand Voltage (Uimp): 4 kV
• Rated Insulation Voltage (Ui): 300 V
• Dielectric Strength: 2 kV for 1 min
• Pollution Degree: 2
• Electrical Life: 4,000 operations
• Mechanical Life: 20,000 operations
• Contact Position Indicator: Yes
• Protection Degree: IP20
• Operating Temperature: −5 °C … +40 °C (avg ≤ 35 °C)
• Storage Temperature: −25 °C … +70 °C
• Terminal Connection Type: Cable / Pin-type busbar
• Terminal Size (Cable): 10 mm² (AWG 18–8)
• Terminal Size (Busbar): 16 mm² (AWG 18–5)
• Tightening Torque: 2 N·m (≈ 11 in-lbs)
• Mounting: On DIN rail EN 60715 (35 mm) with fast-clip device
• Connection: From top
• Temperature Derating Reference: 30 °C
• Dimensions (mm): H 86 × W 36 × D 76.5
• Approvals: CE / EAC / SAA
