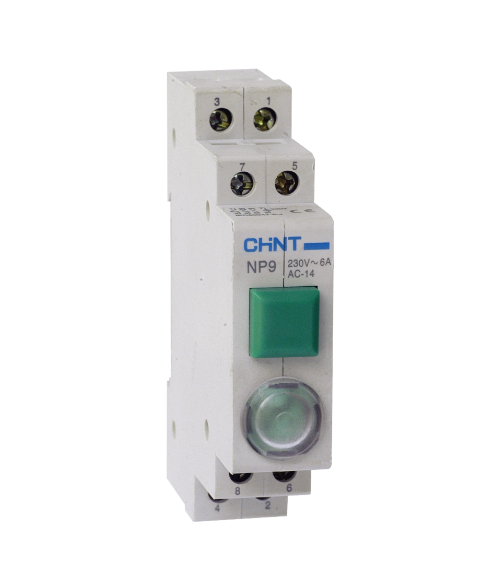

CHINT NP9 Pushbutton,
is a reliable and ergonomic control component designe for CHINT low-voltage systems,
providing precise circuit operation and visual indication in control panels and distribution boards.
Operating at AC 230V (50/60Hz), it features a 16A heating current,
IP20 protection, and IEC/EN 60947-5-1 compliance.
With a mechanical life of 250,000 operations, multiple contact configurations,
and LED indicator options, the NP9 ensures long service life, high sensitivity,
and adaptability for industrial automation and electrical control applications.
- Rated Voltage: AC 230V, 50/60Hz
- Utilization Category: AC-14
- Rated Conventional Heating Current (Ith): 16A
- Rated Operational Current (Ie): 6A
- Rated Insulation Voltage (Ui): 500V
- Protection Degree: IP20
- Standards Compliance: IEC/EN 60947-5-1
- Ambient Temperature: −5°C to +40°C (average ≤35°C in 24h)
- Altitude: ≤2000m
- Humidity Conditions: ≤50% RH at +40°C; ≤90% RH at +20°C (non-condensing)
- Mounting Category: II / III
- Pollution Degree: 2
- Mounting Type: TH35-7.5 standard DIN rail (inclination ≤5°)
- Electrical Life: ≥100,000 operations
- Mechanical Life: ≥250,000 operations
- Contact Assemblies:
- 1NO, 2NO, 3NO, 4NO
- 1NO + 1NC, 1NO + 2NC
- 2NO + 1NC, 2NO + 2NC, 3NO + 1NC (not available for illuminated type)
- Signal Lamp Specifications:
- Rated Voltage: AC/DC 6.3V, 12V, 24V, 110V, 230V
- Rated Current: ≤20mA
- LED Service Life: ≥30,000h
- Dimensions (mm):
- Height: 86 ± 1.4
- Width: 18 ± 0.43
- Depth: 66.7 ± 0.37
- Mounting holes: 45 ± 0.31 spacing
