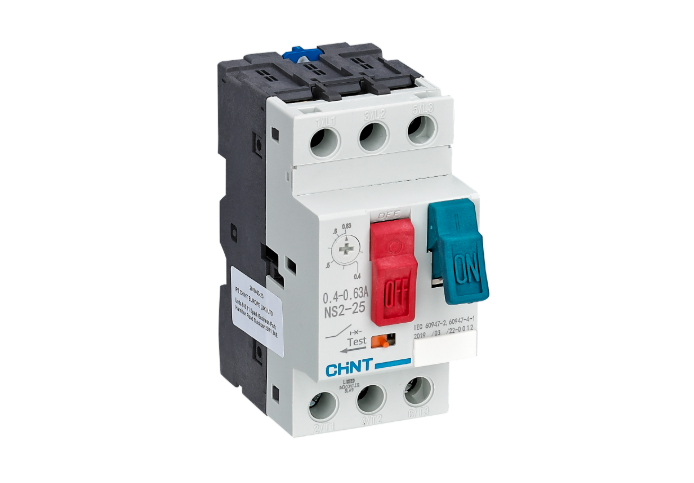

CHINT NS2 Manual Motor Starter,
is a compact, reliable device that provides both manual motor control and comprehensive protection against overload,
short-circuit, and phase failure. Rate for operational currents up to 32 A,
it combines the functions of a circuit breaker and a thermal overload relay in one unit.
Built to IEC/EN 60947-2 and IEC/EN 60947-4-1 standards, the NS2 ensures safe,
precise, and efficient motor starting and stopping, making it ideal for industrial machinery, pumps, compressors, and automation systems.
- Standards: IEC/EN 60947-2, IEC/EN 60947-4-1
- Function: Manual motor starter with overload and short-circuit protection
- Utilization Category: AC-3
- Rated Operational Voltage (Ue): Up to 690 V AC
- Rated Insulation Voltage (Ui): 690 V
- Rated Impulse Withstand Voltage (Uimp): 6 kV
- Rated Operational Current (Ie): 0.1 A – 32 A (depending on model)
- Rated Short-Circuit Breaking Capacity (Icu):
- 100 kA at 400 V (with backup fuse)
- 50 kA at 400 V (without fuse)
- Rated Short-Circuit Making Capacity (Icm): 105 kA
- Setting Range (Thermal Trip): Adjustable depending on motor current rating
- Trip Classes: Class 10A
- Protection Functions:
- Thermal overload
- Short-circuit protection
- Phase failure protection
- Control Type: Manual ON/OFF operation with rotary handle
- Indication: ON/OFF and trip position indicators
- Auxiliary Contacts (optional):
- 1NO + 1NC or 2NO + 2NC
- Rated current: AC-15 (400 V / 2.5 A), DC-13 (220 V / 0.3 A)
- Mounting Type: DIN rail or panel mounting
- Protection Degree: IP20 (front), IP40 (with enclosure)
- Ambient Temperature: −5 °C to +40 °C (operation)
- Altitude: ≤ 2000 m
- Mechanical Life: 100,000 operations
- Electrical Life: 50,000 operations
- Terminal Capacity: 1.5 – 10 mm²
- Tightening Torque: 2.5 N·m
- Accessories:
- Shunt trip
- Under-voltage release
- Auxiliary contacts (side or front mount)
- Enclosures for surface or flush mounting
- Applications:
- Industrial motor control
- Pumps, fans, compressors
- Conveyors, mixers, and automation lines
- Machine tool control panels
