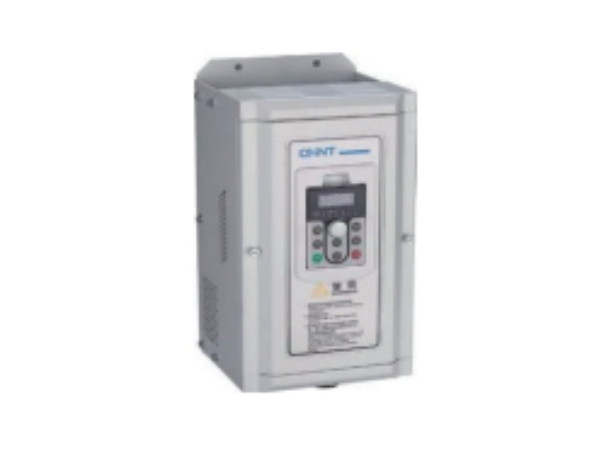

CHINT NVF2G-S General Purpose variable frequeny drive

CHINT NVF2G-S General Purpose variable frequeny drive,
is a compact, high-performance inverter designe for flexible and efficient control of AC motors.
furthermore Offering vector and V/F control modes, it ensures smooth torque output,
in addition energy savings, and reliable operation in light and general-duty applications.
With integrated PID control, RS-485 communication, and multi-speed programming,
finally the NVF2G-S delivers powerful motor performance for pumps, fans, conveyors, and industrial automation systems.

• first Standards: IEC/EN 61800-2, IEC/EN 61800-5-1
• second Input Voltage:
  • 1-phase 220 V (S1 model)
  • 3-phase 380 V (S3 model)
• next Output Frequency: 0–600 Hz
• afterward Control Type: Open-loop vector control / V/F control
• subsequently Starting Torque: 150% at 0.5 Hz
• to illustrate Overload Capacity: 150% rated current for 60 s
• for instance Carrier Frequency: Adjustable from 1–15 kHz
• Speed Control Precision: ±0.5% of maximum frequency
• conversely Built-in PID Control: For automatic pressure, temperature, or flow regulation
• Auto Energy Saving: Optimizes voltage and frequency for efficient motor operation
• but Acceleration/Deceleration Time: 0.1–3600 s adjustable
• also Braking Function:
  • Built-in braking unit for ≤2.2 kW
  • External braking resistor supported
• Communication: RS-485 port with MODBUS-RTU protocol
• likewise Protection Features:
  • Overvoltage, undervoltage, overcurrent
  • Short-circuit, overheat, and stall prevention
  • Phase loss and ground fault protection
• moreover Environmental Conditions:
  • Operating Temperature: −10 °C to +40 °C (derate 1%/°C above 40 °C)
  • Altitude: ≤ 1000 m (derate 1%/100 m above 1000 m)
  • Humidity: ≤ 95% non-condensing
• afterward Cooling Method: Forced air cooling
• Protection Level: IP20
• furthermore Control Terminals:
  • 6 Digital Inputs
  • 2 Analog Inputs (0–10 V / 4–20 mA)
  • 1 Analog Output
  • 2 Relay Outputs
• Applicable Motor Power Range:
  • 0.4 kW – 22 kW
• Mounting Type: Wall or panel mount
• meanwhile Dimensions: Compact modular design suitable for narrow cabinet installations
• finally Applications:
  • Pumps and fans
  • HVAC and ventilation systems
  • Textile and packaging machines
  • Conveyor systems and compressors
  • General automation and control systems
