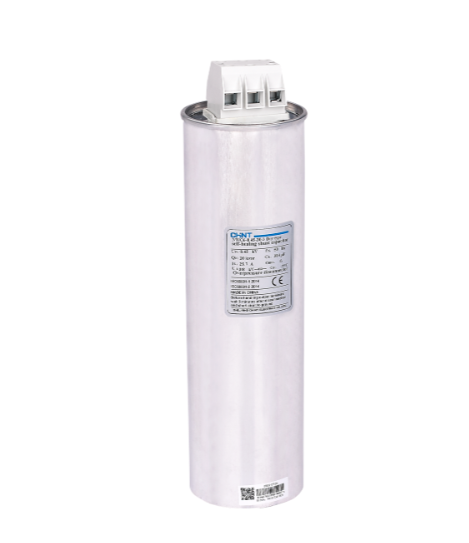

CHINT NWC6 Series Dry Low-voltage Shunt Capacitor

CHINT NWC6 Series Dry Low-voltage Shunt Capacitor,
is designe for power frequency AC systems up to 1000V to enhance power factor,
reduce line losses, and improve voltage quality.
Built with dry flame-retardant materials and a self-healing mechanism, it provides safe,
oil-free operation and long service life. With capacities from 5 to 40 kVar and compliance with IEC/EN 60831-1/2 standards,
the NWC6 ensures reliable performance in industrial, commercial, and power distribution systems.

• Application: Power factor improvement, voltage stabilization, and line loss reduction in low-voltage AC systems up to 1000V
• Rated Voltage: 0.23 kV / 0.25 kV / 0.4 kV / 0.45 kV / 0.48 kV / 0.525 kV
• Rated Frequency: 50 Hz or 60 Hz (customizable)
• Rated Capacity: 5–40 kVar
• Capacitance Deviation: −5% to +10% (max difference ≤1.08 between any two terminals)
• Loss Tangent (tan δ): ≤0.0012 under rated voltage
• Withstand Voltage:
  • Interelectrode: 2.15 × UN (10 s)
• Pole-to-case: 3.6 kV (60 s)
• Maximum Overvoltage: 1.1 × UN (≤8 h/24 h)
• Maximum Current: 1.3 × IN (1.6 × IN for 2 h/24 h; 2.0 × IN for 30 min/24 h)
• Discharge Feature: Voltage ≤75V within 3 minutes after disconnection
• Inrush Current: 200 × IN
• Power Loss: ≤0.20 W/kVar
• Construction Type: Dry, oil-free, self-healing, overpressure-protected aluminum shell
• Harmonic Limit: THDU ≤5%, THDI ≤20%
• Fixing Method: Bottom threaded bolt M12/M16
• Ambient Temperature: −25°C to +50°C (custom −25/D option available)
• Altitude: ≤2000 m (derating required above)
• Relative Humidity: ≤50% at 40°C; ≤90% at 20°C
• Expected Lifetime: ≥200,000 hours
