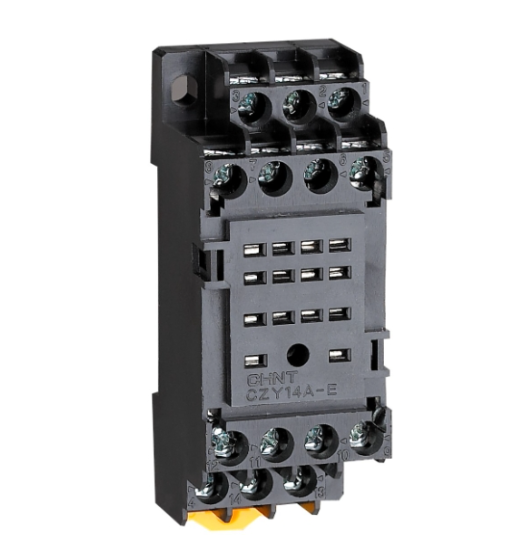

CHINT Relay Socket

CHINT Relay Socket,
is a robust and versatile base designe for securely mounting miniature and general-purpose relays.
furthermore Compatible with CHINT’s NJX, JZX, and NJDC series, it ensures quick installation, reliable electrical contact,
and easy replacement in automation systems. With high dielectric strength,
flame-retardant materials, and multiple mounting and wiring options (DIN rail or panel),
finally it provides a safe and stable connection for control circuits in industrial and commercial applications.

• Applicable Relays: NJX series, JZX series, NJDC series, and other CHINT miniature relays
• Rated Voltage: 250V AC / 30V DC
• Rated Current: 10A
• Contact Resistance: ≤ 50mΩ
• Insulation Resistance: ≥ 100MΩ (at 500V DC)
• Dielectric Strength:
  • Between coil and contact: 2000V AC / 1 min
  • Between contacts of different poles: 1500V AC / 1 min
• Terminal Type: Screw, spring, or plug-in terminals depending on socket model
• Wiring Capacity:
  • Solid or stranded wire: 0.5–2.5 mm²
• Terminal torque: 0.5–0.6 Nm
• Mounting Method:
  • DIN rail mounting (35mm standard rail)
  • Panel mounting via screws
• Material: Flame-retardant engineering thermoplastic
• Operating Temperature: −40°C to +70°C
• Relative Humidity: ≤ 85% RH
• Weight: Approx. 40–60g per unit (depending on type)
• Compatibility: Compatible with both AC and DC relay coils
• Color: Black or gray (depending on model series)
• Standards Compliance: IEC 60947-5-1
