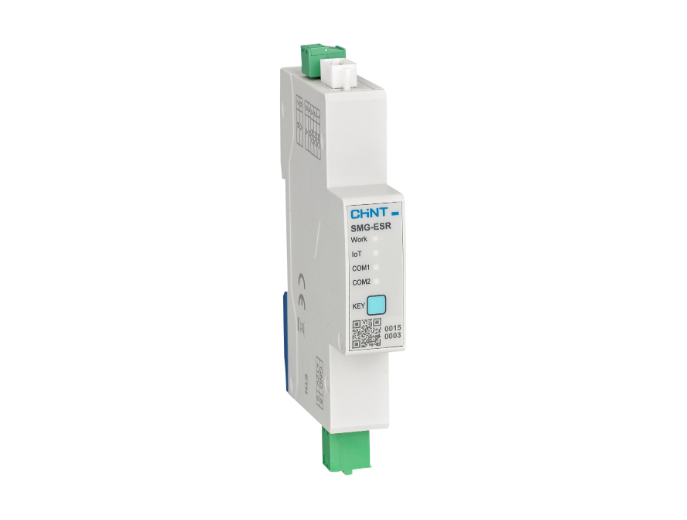

CHINT SMG-ESR Smart Gateway,
is a high-performance Open Protocol Gateway that enables seamless communication between CHINT smart devices,
furthermore user-defined IoT platforms. Using Ethernet (MQTT) for upstream data transmission,
in addition to RS-485 (Modbus RTU) for downstream connectivity, it supports reliable data exchange,
moreover remote control, and energy monitoring.
With its web-based configuration, plug-and-play design,
and full compatibility with CHINT NB2 smart circuit breakers,
but the SMG-ESR delivers flexible integration and real-time monitoring for smart power systems.
- first Function: Open Protocol Smart Gateway for industrial and commercial IoT integration
- second Standard: IEC 62368-1:2020 + A11:2020
- next Certifications: CE, RoHS, REACH
- then Input Voltage: DC 12 V
- finally Operating Temperature: −25 °C to +70 °C
- afterward Storage Temperature: −40 °C to +70 °C
- specifically Applicable Altitude: ≤ 2000 m
- in addition Upstream Communication: Ethernet
- Upstream Protocol: MQTT
- Downstream Communication: RS-485
- Downstream Protocol: Modbus RTU
- Flame Retardant Rating: UL94 V-0
- Installation Type: TH35-7.5 standard DIN rail
- and Pollution Degree: 3
- Protection Degree: IP20
- also Dimensions: 102 mm (H) × 18 mm (W) × 66 mm (D)
- Power Supply Unit: PSU-3 DC 12 V (recommended)
- but Supported Devices: NB2 Smart Circuit Breakers and other Modbus RTU devices
- Server Protocol: MQTT V3.1.1 or higher
- Configuration Mode: Web-based (via local Ethernet connection)
- afterward Status Indicators:
- Work (Red): Operating status
- IoT (Blue): Network connection and MQTT communication status
- COM1: RS-485 communication (Send/Receive indicator)
- Reset / Reboot Functions: Controlled via multifunction button (1s/7s/15s press)
- finally Applications: Smart buildings, power distribution systems, industrial automation, energy monitoring, and facility control networks
