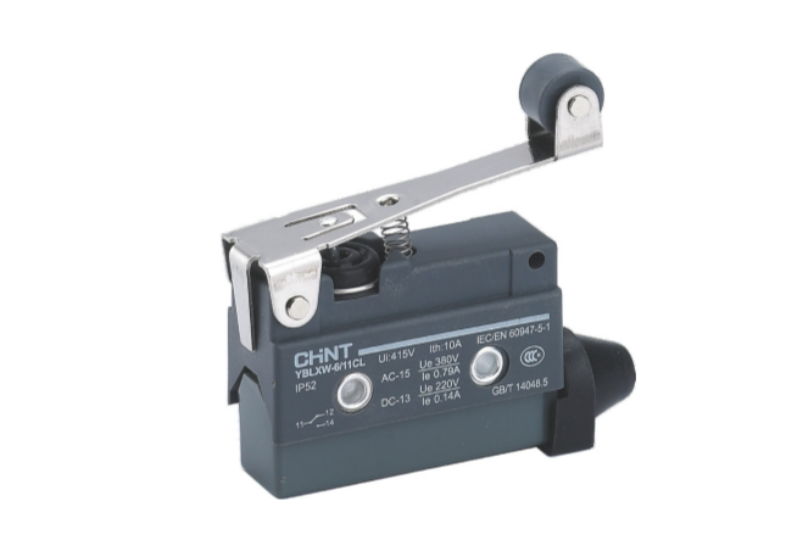

CHINT YBLXW-6 Microswitch,
is a compact and reliable micro-gap switch designe for control and auxiliary circuits in industrial automation.
With rated voltages up to AC 380 V and DC 220 V, it ensures precise mechanical actuation for travel control,
position detection, and safety interlocking. Built to IEC 60947-5-1 standards,
the YBLXW-6 offers consistent performance in machinery, textiles, light industry, and electronic equipment applications.
- Standards Compliance: GB/T 14048.5, IEC 60947-5-1
- Rated Operating Voltage: AC 380 V, DC 220 V
- Rated Operating Current: AC-15: 0.79 A; DC-13: 0.14 A
- Rated Thermal Current (Ith): 5 A
- Insulation Voltage (Ui): 415 V
- Impulse Withstand Voltage (Uimp): 2.5 kV
- Operating Frequency: 20 operations per minute
- Operating Speed: 0.1–0.5 mm/s
- Contact Type: 1 NO + 1 NC (SPDT configuration)
- Protection Degree: IP52
- Installation Category: II
- Pollution Degree: 3
- Ambient Temperature: −5 °C to +40 °C
- Altitude: ≤ 2000 m
- Relative Humidity: ≤ 50% at +40 °C (≤ 90% at +20 °C, non-condensing)
- Mounting Type: Screw or panel mount
- Mechanical Durability: High-resilience mechanism ensuring long life under frequent actuation
- Models and Actuator Types:
- Plunger Type: YBLXW-6/11BZ
- Short/Long Push Button: YBLXW-6/11DA / YBLXW-6/11CA
- Roller Lever Types: YBLXW-6/11CL, YBLXW-6/11DL, YBLXW-6/11ZL
- Universal Types: YBLXW-6/11W1, W2, W3
- Mechanical Characteristics:
- Movement Force (OF): ≤ 8 N (varies by model)
- Movement Route (PT): 3.5–12 mm
- Overtravel (OT): 4.7–16 mm
- Wiring Terminals: Screw-type for secure connection
- Applications:
- Position detection
- Travel and limit control
- Safety interlocking
- Mechanical automation systems
