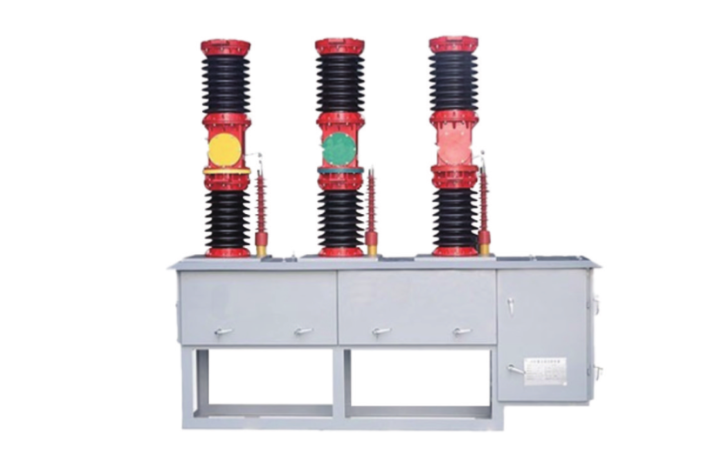

CHINT ZW7-40.5 series Vacuum Circuit Breaker,
Outdoor-type
Application: Mainly use for rate voltage 35kV and below power system,
as a division, combined load current, overload current and short circuit current,
can also use in other similar places
Standards: IEC 62271-100, IEC 62271-1
Parameters: Rated voltage: 40.5kV.
Rated current: 630~2500A.
Rated short-circuit breaking current: 25kA, 31.5kA.
Features: 1. Compact structure, long lifespan
2. High and low temperature resistance, ultraviolet resistance, aging resistance
3. Less maintenance
4. Safe and reliable
