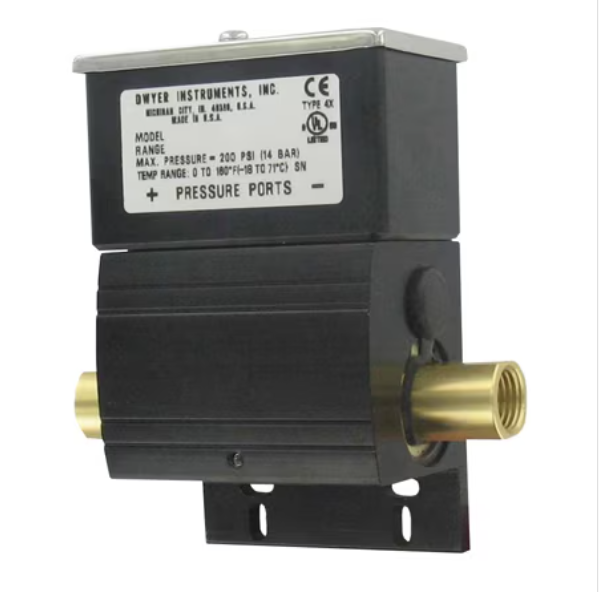

Dwyer Series DX Wet/Wet Differential Pressure Switch DXW-11-153-1

Dwyer Series DX Wet/Wet Differential Pressure Switch DXW-11-153-1,
The Series DX Wet/Wet Differential Pressure Switch makes a contact output based
on the differential between two pressure sources. Wetted materials of brass and
fluoroelastomer are suitable for use with most gases and water based solutions. The
switch can be used for low differential pressure indication with set point on a decrease
of pressure as low as 1 psid (0.07 bar). Differential set point ranges are available
from 2.5 to 75 psid (0.17 to 5.17 bar) on increasing differential pressure and 1.0 to
67 psid (0.07 to 4.62 bar) on decreasing differential pressure. Unit features a high
static pressure rating of 200 psig (13.8 bar). Weatherproof, UL type 4X, enclosure for
dust laden, outdoor, or wash-down installation environments. Externally adjustable set
point, integral mounting flange and a removable electrical terminal block for quick and
easy installation.
