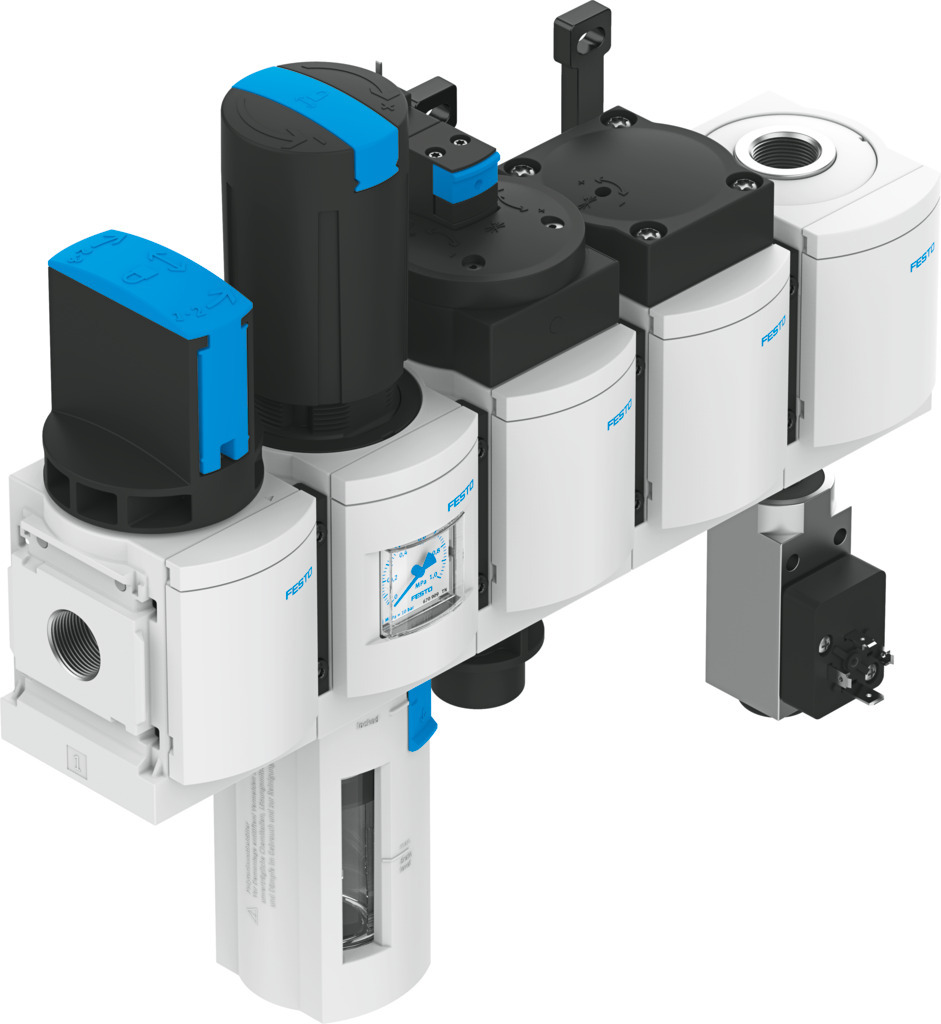

FESTO Air preparation combination unit MSB6N-1/2:C3J3D1A1F3-WP 543584
- Size6
- SeriesMS
- Actuator lockRotary knob with detent can be closed with accessories
- Mounting positionVertical +/- 5°
- Grade of filtration5 µm
- Condensate drainManually rotating
- Structural designBranching module Soft-start valve Pressure switch On/off valve Filter regulator with pressure gauge
- Controller functionOutlet pressure constant With primary pressure compensation With secondary exhausting With return flow function
- Bowl guardPlastic bowl guard
- Symbol00991759
- Pressure gaugewith pressure gauge
- Operating pressure4.5 bar … 18 bar
- Pressure regulation range0.5 bar … 12 bar
- Standard nominal flow rate3000 l/min
- Coil characteristics24 V DC: 1.5 W
- Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
- Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)2 – Moderate corrosion stress
- LABS (PWIS) conformityVDMA24364-B1/B2-L
- Storage temperature-10 °C … 60 °C
- For use in the food industrySee supplementary material information
- Air quality class at the outputCompressed air as per ISO 8573-1:2010 [6:4:4]
- Temperature of medium-10 °C … 60 °C
- Ambient temperature-10 °C … 60 °C
- Product weight3500 g
- Type of mountingWith accessories
- Pneumatic connection 11/2 NPT
- Pneumatic connection 21/2 NPT
- Pneumatic connection 3G1/2
- Note on materialsRoHS-compliant
- Housing materialDie-cast aluminum
- Material of bowlPC
