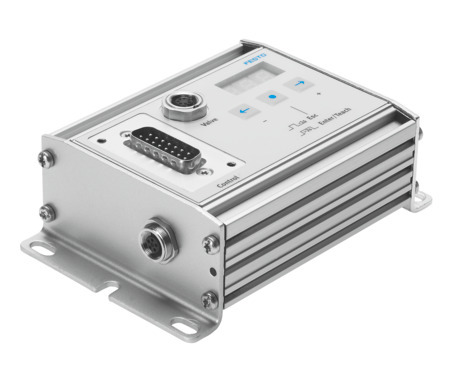

FESTO End position controller SPC11-MTS-AIF-2 548129
- Data backupFlash memory
- Control signalsRemote/teach input/left/right Input, position 1/2/3/4 Error-Ready output Output, position 1/2/3/4
- Display3-digit Red color Seven-segment display
- Control elements3 pushbuttons Touch sensitive keyboard
- Fuse protection for outputsElectronic Max. tripping current 500 mA Via sum of all outputs
- Number of digital outputs5
- Number of digital inputs8
- Outputs typeas per IEC 61131-2 Positive logic (PNP) No galvanic isolation
- Design of inputsas per IEC 61131-2 Positive logic (PNP) No galvanic isolation
- Debounce time at inputs20 ms
- Max. current consumption with proportional valve1.1 A
- Max. current consumption without proportional valve70 mA
- Nominal operating voltage DC24 V
- Input current consumption4 mA
- Current rating per output100 mA
- Permissible voltage fluctuations+/- 25 %
- CertificationRCM compliance mark
- CE marking (see declaration of conformity)As per EU EMC directive As per EU RoHS directive
- UKCA marking (see declaration of conformity)To UK instructions for EMC To UK RoHS instructions
- Continuous shock resistance to DIN/IEC 68 Part 2-82Tested as per severity level 2
- LABS (PWIS) conformityVDMA24364-B2-L
- Relative air humidity0 – 95 % Non-condensing
- Degree of protectionIP65 as per IEC 60529
- Vibration resistance to DIN/IEC 68 Part 2-6Tested as per severity level 1
- Ambient temperature0 °C … 50 °C
- Product weight400 g
- Elec. connection of operating voltage, inputs and outputs15-pin SUB-D Plug
- Electrical connection, proportional valvePlug Round design M9 7-pin
- Linear potentiometer electrical connection5-pin Socket M9 Round design
- Cable length30 m
