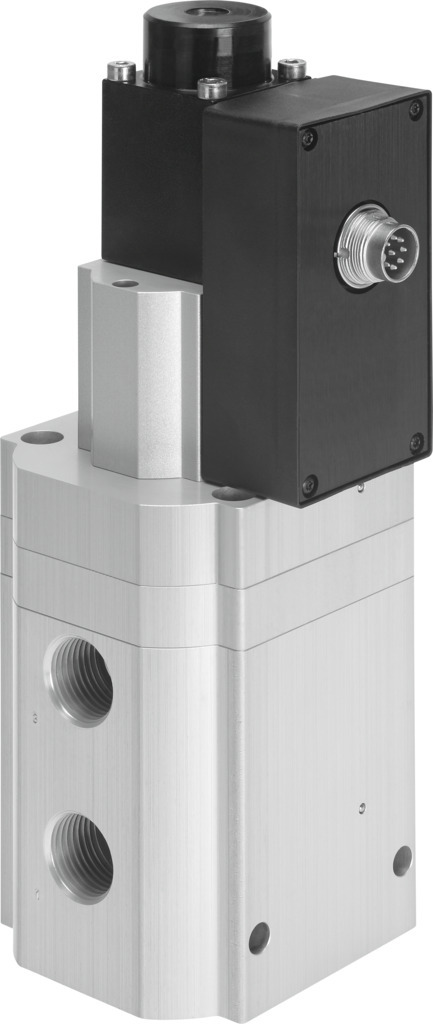

FESTO Proportional-pressure regulator MPPES-3-1/2-2-010 187328
- Nominal size, supply11 mm
- Nominal size, exhaust12 mm
- Type of actuationElectric
- Sealing principleSoft
- Mounting positionoptional
- DesignPiloted piston regulator
- Short circuit current ratingFor all electrical connections
- Safety instructionsSafety position MPPES: if the power supply cable is interrupted, the output pressure drops to 0 bar.
- Symbol00995304
- Reverse polarity protectionFor all electrical connections
- Valve function3-way proportional-pressure regulator, closed
- Operating pressure≤0.4 MPa
- Operating pressure≤4 bar
- Pressure regulation range0 MPa … 0.2 MPa
- Pressure regulation range0 bar … 2 bar
- Inlet pressure 13 bar … 4 bar
- Inlet pressure 10.3 MPa … 0.4 MPa
- Max. pressure hysteresis0.005 MPa
- Max. pressure hysteresis0.05 bar
- Switching time off1000 ms
- Switching time on220 ms
- Operational voltage range DC18 V … 30 V
- Nominal operating voltage DC24 V
- Residual ripple10 %
- SETPOINT/ACTUAL valuesVoltage type 0 – 10 V
- Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4] Inert gases
- Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
- ApprovalRCM trademark
- KC markKC-EMV
- CE mark (see declaration of conformity)To EU EMC Directive In accordance with EU RoHS Directive
- UKCA marking (see declaration of conformity)To UK instructions for EMC To UK RoHS instructions
- Corrosion resistance class CRC2 – Moderate corrosion stress
- LABS (PWIS) conformityVDMA24364-B2-L
- Media temperature0 °C … 60 °C
- Degree of protectionIP65
- Ambient temperature0 °C … 50 °C
- Product weight2670 g
- Electrical connection8-pin M16x0.75 Plugs To DIN 45326 Round design
- Type of mountingWith through-hole
- Pneumatic connection, port 1G1/2
- Pneumatic connection, port 2G1/2
- Pneumatic connection, port 3G1/2
- Note on materialsRoHS-compliant
- Material housingWrought aluminium alloy
- Material membraneNBR
