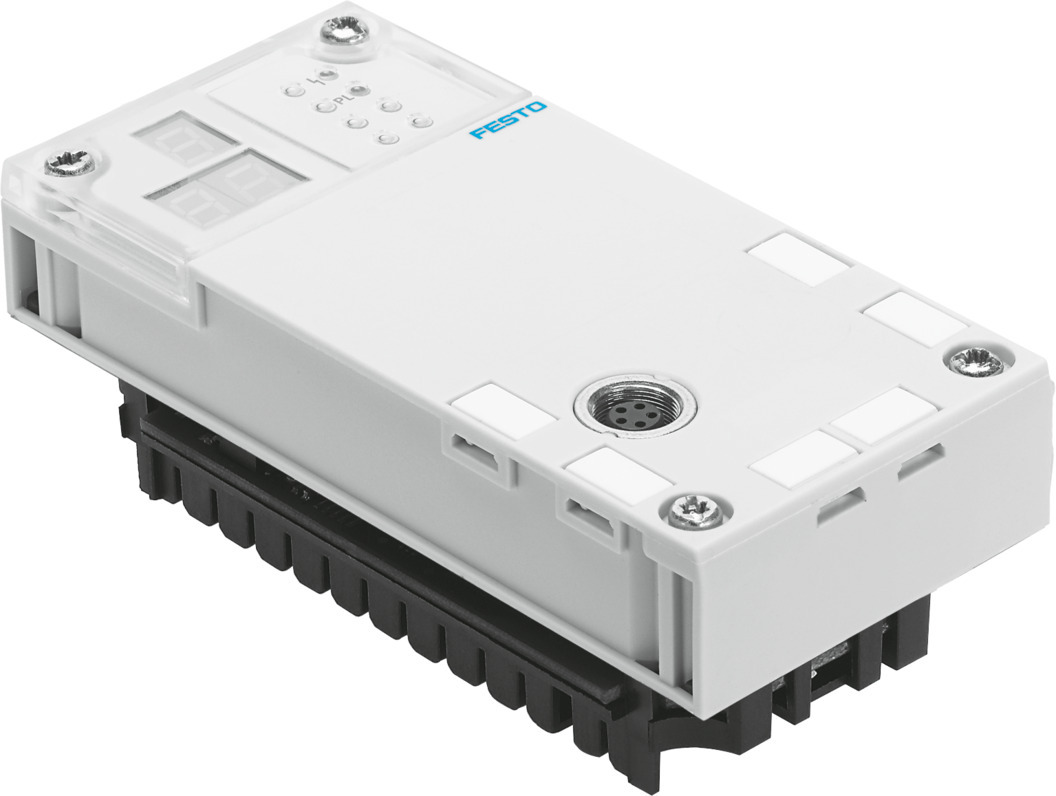

FESTO Measuring Module CPX-CMIX-M1-1 567417
- Dimensions (W x L x H)50 x 107 x 55 mm
- DiagnosisChannel-oriented and module-oriented diagnostics
- Short circuit current ratingyes
- Device-specific diagnosticsUndervoltage of modules Measuring system undervoltage Via local 7-segment display
- Max. number of modules9
- Display7-segment display
- Status displaysLED yellow = PL (power load) LED red = error
- Operational voltage range DC18 V … 30 V
- Nominal operating voltage DC24 V
- Power failure bridging10 ms
- Current consumption at nominal operating voltage80 mA
- ApprovalC-Tick
- LABS (PWIS) conformityVDMA24364-B2-L
- Storage temperature-20 °C … 70 °C
- Relative air humidity5 – 95% Non-condensing
- Degree of protectionIP65 To IEC 60529
- Ambient temperature-5 °C … 50 °C
- Product weight140 g
- Axes per string1
- Number of axis strings1
- Max. cable length30 m
- Electrical connection control interfaceSocket M9 5-pin
- Control-InterfaceDigital CAN bus with Festo protocol
- Note on materialsRoHS-compliant
- Material housingPA-reinforced
