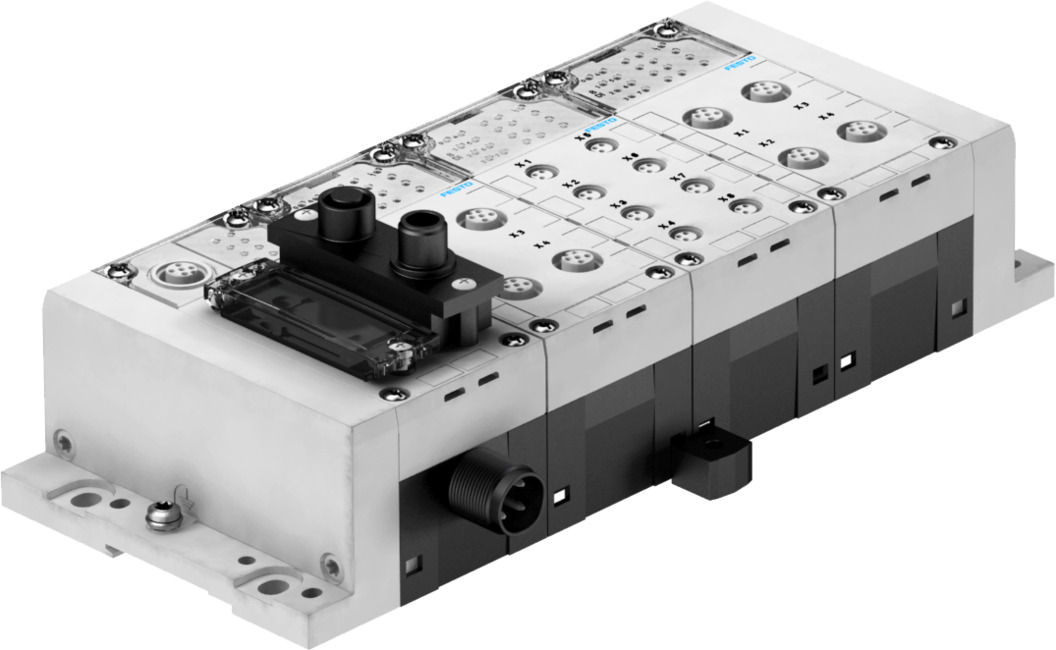

FESTO Terminal CPX 197330
- Electrical controlFieldbus Integrated controller
- Grid dimension18.9 mm
- Type of mountingWith H-rail
- Max. number of modules10
- Mounting positionVertical Horizontal
- Ambient temperature-5 °C … 50 °C
- Note on ambient temperature-5 – 60°C for vertical installation
- Storage temperature-20 °C … 70 °C
- Relative air humidity95 % Non-condensing
- Degree of protectionIP20
- Corrosion resistance class CRC0 – No corrosion stress
- Vibration resistanceTransport application test with severity level 1 to FN 942017-4 and EN 60068-2-6
- Shock resistanceShock test with severity level 1 to FN 942017-5 and EN 60068-2-27
- Protection against direct and indirect contactPELV
- LABS (PWIS) conformityVDMA24364 zone III
- CE mark (see declaration of conformity)To EU EMC Directive In accordance with EU RoHS Directive
- UKCA marking (see declaration of conformity)To UK instructions for EMC To UK RoHS instructions
- KC markKC-EMV
- ApprovalRCM trademark c UL us listed (OL)
- Certificate issuing authorityUL E239998
- Note on materialsRoHS-compliant
- Material housingPA
- DiagnosisModule-specific Via bus Via LED
- Max. address volume, inputs64 Byte
- Max. address volume, outputs64 Byte
- Internal cycle time< 1 ms
- Nominal DC operating voltage, electronics/sensors24 V
- Permissible voltage fluctuations for electronics/sensors± 25%
- Max. power supply8 A
- Power failure bridging10 ms
- Reverse polarity protectionyes
