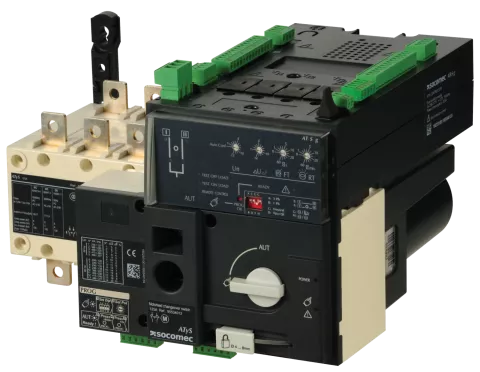

SOCOMEC ATyS g 4X160A F 95534016 Automatic Transfer Switch ATyS g 4P 160A

SOCOMEC ATyS g 4X160A F 95534016 Automatic Transfer Switch ATyS g 4P 160A

Add to wishlist
Category: Terminals & Bars
Brand: SOCOMEC
Share: Facebook Twitter Tumblr Linkedin Whatsapp

You may also like

  • CHINT M6 3P4W Neutral Transformer

    CHINT M6 3P4W Neutral Transformer

  • AC surge protective device LY1-B25/3(S)+1 MONOBLOCK MULTI-POLE SPD

    AC surge protective device LY1-B25/3(S)+1 MONOBLOCK MULTI-POLE SPD

  • SMC NCQ2-Z Accessory Rod End Nut

    SMC NCQ2-Z Accessory Rod End Nut

  • 1SDA100718R1 / XT5N 630 TMA 630-6300 3p F F ABB C.BREAKER TMAX XT5N 630 FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMA R 630 I3=3150...6300

    1SDA100718R1 / XT5N 630 TMA 630-6300 3p F F ABB C.BREAKER TMAX XT5N 630 FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMA R 630 I3=3150...6300

  • MITSUBISHI ELECTRIC Mechanical Option MI-203F-W

    MITSUBISHI ELECTRIC Mechanical Option MI-203F-W

  • CHINT RDSD HV DC Disconnect Switch 100~1000A

    CHINT RDSD HV DC Disconnect Switch 100~1000A

Description
Shipping & delivery

SOCOMEC ATyS g 4X160A F 95534016 Automatic Transfer Switch ATyS g 4P 160A,
ATyS g are 3 or 4 pole automatic transfer switches, with positive break indication.
They incorporate all the functions offered by the ATyS r,
as well as functions intended for mains/mains and mains/genset applications.
In automatic mode they enable the monitoring of, and the on-load changeover between, two power supply sources,
in accordance with the parameters configured via potentiometers and DIP switches.
Remote monitoring of the ATyS g is possible with the optional RS485 communication module.
They are intended for use in low voltage power supply systems where a brief interruption of the load supply is acceptable during transfer



Strong Points

  • Rapid commissioning

  • Specifically designed for mains/mains and mains/genset applications

  • RS485 communication

  • More robust

Classification

UNSPSC 39122205
ETIM Class EC000216
IGCC 5177

Commerce

Description Automatic Transfer Switch ATyS g, switching type I-0-II, 4P 160A, with positive break indication, ATS with integrated Dual Power Supply, repleacable motor and back plate mounting for Mains-Mains & Mains-Genset applications
Effective date 2012-06-21
Offer Life Cycle Code 40
Country of origin FR

Environmental Sustainability

Climate change – Total – Cradle to Grave [kg CO₂ eq.] 1675
Climate change – Total – Cradle to Gate [kg CO₂ eq.] 88
SVHC > 0.1 mass percentage? No
RoHS applicable? Yes

ETIM – Electrical characteristics

Max. rated operation voltage Ue AC [V] 800
Rated operating voltage [V] 380..690
Rated permanent current Iu [A] 160
Rated permanent current at AC-23, 400 V [A] 160
Rated permanent current at AC-21, 400 V [A] 160
Rated short-time withstand current lcw [kA] 7
Rated operation power at AC-23, 400 V [kW] 80
Switching power at 400 V [kW] 1280
Conditioned rated short-circuit current Iq [kA] 100
Number of poles 4

ETIM – Mechanical characteristics

Suitable for floor mounting No
Suitable for front mounting 4-hole No
Suitable for front mounting centre No
Suitable for distribution board installation No
Suitable for intermediate mounting Yes
Colour control element Other
Degree of protection (IP), front side IP20
Width [mm] 317
Height [mm] 135
Depth [mm] 244

ETIM – Technical features

Version as main switch Yes
Version as maintenance-/service switch Yes
Version as safety switch Yes
Version as emergency stop installation No
Version as reversing switch Yes
Number of switches 2
Number of auxiliary contacts as normally open contact 3
Motor drive optional No
Motor drive integrated Yes
Voltage release optional No
Device construction Built-in device fixed built-in technique
Type of control element Other
Interlockable Yes
Type of electrical connection of main circuit Bolt connection

Logistics

GTIN/EAN 3596032775773
Customs number 8536508000
Price unit PC
Weight of the packing unit [kg] 9.34
Length of the packing unit [m] 0.04
Width of the packing unit [m] 0.355
Depth of the packing unit [m] 0.355

Norms

Conformity to standards
  • CCC
  • IEC

Technical Characteristics

Height [mm] 135
Width [mm] 317
Depth [mm] 244
Weight [kg] 9.34
Control operator Automatic programmable for GENSET
Number of poles 4
Rated current [A] 160
Type Class PC
Frame size B3
