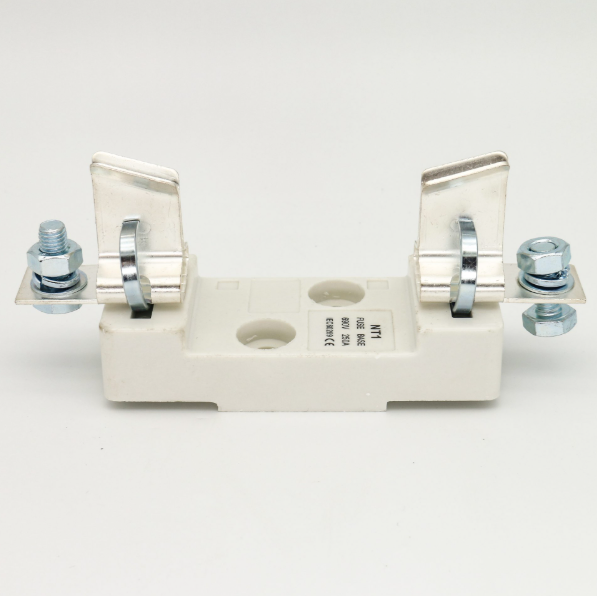

Fuse Base 690V 250A,
Description
The NT1 fuse base is a type of infrastructure used to mount fuses. It is usually made of high temperature resistant materials to ensure that the fuse is securely fastened to the base while it is in operation.NT1 fuse bases are usually available in standard sizes to accommodate various types of fuses. They are typically installed in electrical systems to protect circuits from overloads and short circuits.NT1 fuse bases are widely used in industrial and commercial applications and are an important part of electrical systems.
Application
NT1 fuse bases are widely used in industrial and commercial applications and are an important part of electrical systems.
| No. | Product model |
Model,size and specification of applicable fuse Fnk |
Rated insulation Voltage (V) |
Rated current (A) |
Overall dimension (mm) |
|||||||||
| A | B | D | E | H | φd | |||||||||
| 18033 | RT16-1 | RT16-1 NT1 NH1 | 690 | 250 | 200 | 175 | 58 | 30 | 84 | 10.5 | ||||
| 18034 | RT16-2 | RT16-2 NT2 NH2 | 690 | 400 | 225 | 200 | 60 | 30 | 100 | 10.5 | ||||
| 18035 | RT16-3 | RT16-3 NT3 NH3 | 690 | 630 | 250 | 210 | 60 | 30 | 105 | 10.5 | ||||
