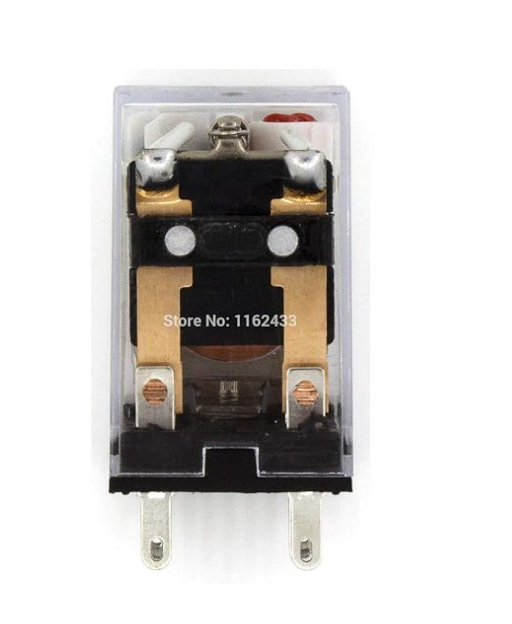

HH52PL DC 24V electromagnetic Relay

HH52PL DC 24V electromagnetic Relay,
with LED Indicator MY2 Series 24VDC HH52P-L MY2NJ.
Coil-voltage-(1pcs):220VAC110VAC24VDC12VDC
Coil-voltage-(10pcs with inner box):220VAC110VAC24VDC12VDC
Coil-voltage-(10pcs with socket):220VAC110VAC24VDC12VDCHH52P series,
electromagnetic relayfinglaiModel number and typeModel numberSame,
modelTypeRelated productHH52PMY2StandardHH52PLHH52P-L, MY2NJWith LED indicatorVisiting…finglaiGeneralModel,
numberHH52P seriesContact materialSilver alloyContact formDPST-NO, DPST-NC,
DPDTContact rating5A@28Vdc/240VacRated coil power1.2Wac, 0.9WdcRated coil voltageAC/DC: 6, 12, 24, 36, 48, 110, 220V,
AC380VDielectric strength1,500Vac, 50/60 Hz for 1 min between coil and contacts
1,000Vac, 50/60 Hz for 1 min between opening contactsPick-up voltageDC types: 75% max;
AC types: 80% maxDrop-out voltageDC types: 10% min; AC types: 30% minOperation,
voltage110% maxContact resistance50mΩ maxTermination8 pinsMountingQuick connectMatched,
socketPYF08A, PY08Matched relay pothookFRSA01, PYC-A1Mechanical life1x107,
operations minElectrical life1x105 operations minInsulation resistance100MΩ min.
at 500 VDCOperating temperature-30 to 55 °C (-22 to 131 °F)Operating humidity35 to 85% RH,
no condensationExternal dimensions27.3x21x35.2 mmAlias nameHH52P series power relay,
electric relay, electrical relayfinglaiHH52P series electromagnetic relay mounting dimensions
